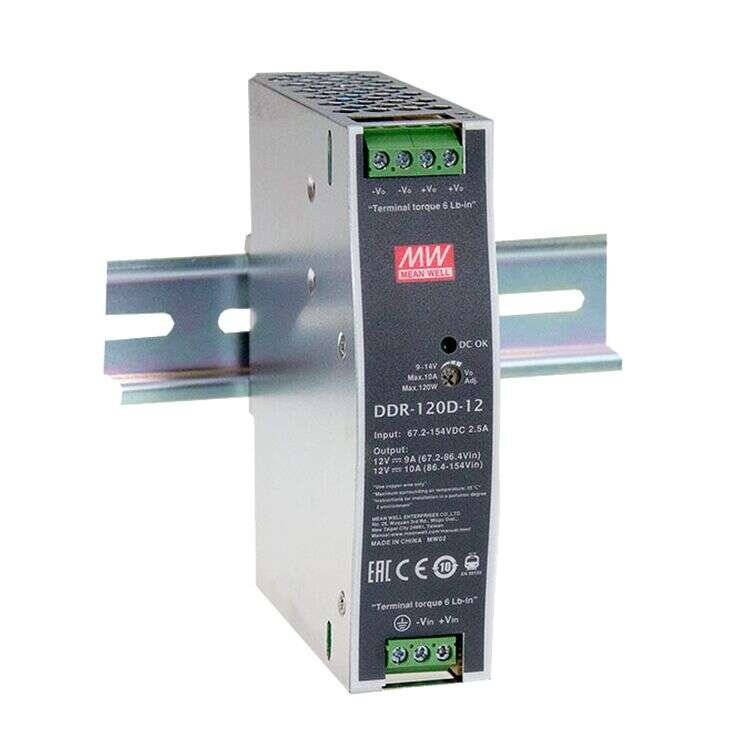

DDR-120 Series
DIN Rail Power Supplies 99.6–120W
DDR-120 Series Main Features:
Can be installed on DIN rail TS-35/7.5 or 15
Protections: Short circuit/ Overload/ Over voltage/ Input reverse polarity/ Input under voltage protection
Models:
Manufacturer:
Type:
Other features:
DDR-120A-12 / DDR-120A-24
DDR-120A-48 / DDR-120B-12
DDR-120B-24 / DDR-120B-48
DDR-120C-12 / DDR-120C-24
DDR-120C-48 / DDR-120D-12
DDR-120D-24 / DDR-120D-48
MEAN WELL
DIN Rail Power Supplies
Compliance to EN50155 and EN45545
-2 railway standard
Width only 32mm
2:1 wide input range
150% peak load capability
DC output adjustable
Cooling by free air convection
4KVdc I/O isolation (Reinforced isolation)
-40~+70°C wide working temperature
3 years warranty
Quote Request
| DDR-120A-12 | DDR-120A-24 | DDR-120A-48 | DDR-120B-12 | DDR-120B-24 | DDR-120B-48 | DDR-120C-12 | DDR-120C-24 | DDR-120C-48 | DDR-120D-12 | DDR-120D-24 | DDR-120D-48 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 99.6 | 100.8 | 100.8 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | ||||
| Output Current | 0-8.3A | 0-4.2A | 0-2.1A | 0-10A | 0-5A | 0-2.5A | 0-10A | 0-5A | 0-2.5A | 0-10A | 0-5A | 0-2.5A | ||||
| Output Voltage | 5 | 24 | 48 | 5 | 24 | 48 | 5 | 24 | 48 | 5 | 24 | 48 | ||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | ||||
| DC Output Adjustment | 9-14V | 24-28V | 48-56V | 9-14V | 24-28V | 48-56V | 9-14V | 24-28V | 48-56V | 9-14V | 24-28V | 48-56V | ||||
| Dimensions | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | ||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | IEC 62368-1 (LVD) approved, Design refer to UL508 | |||||||||||||||
| EMC Standards | Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8 | |||||||||||||||
