Home / AC-DC DIN Rail Type / NDR-120

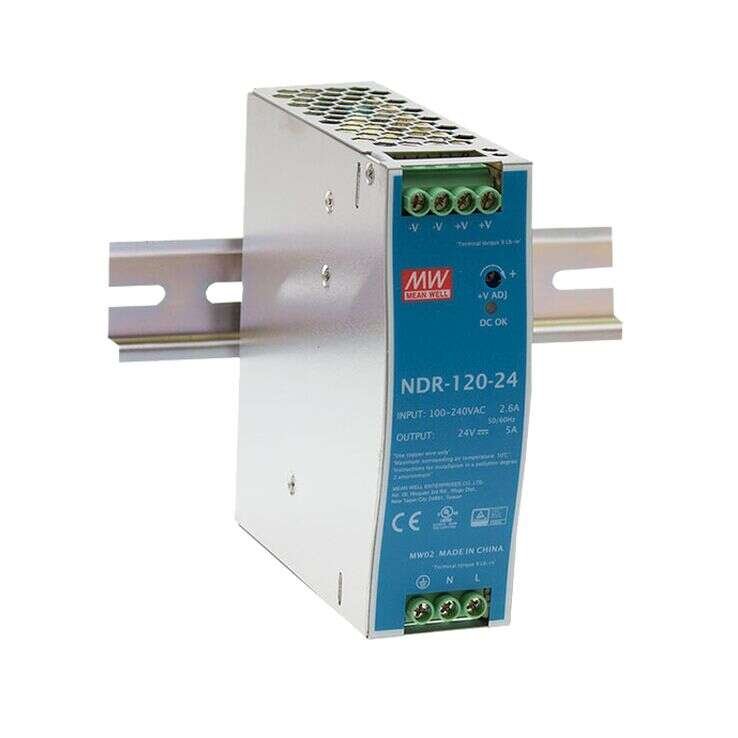

NDR-120 Series
DIN Rail Power Supplies 120W
NDR-120 Series Main Features:
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage / Over temperature
Models:
Manufacturer:
Type:
Other features:
NDR-120-12 / NDR-120-24
NDR-120-48
MEAN WELL
DIN Rail Power Supplies
Universal AC input / Full range
Can be instaled on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
EN61000-6-2 (EN500082-2) Industrial immunity level
100% full load burn-in test
3 years warranty
Quote Request
| NDR-120-12 | NDR-120-24 | NDR-120-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 120 | 120 | 120 | |||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | |||||||||||||
| Output Current | 10A | 5A | 2.5A | |||||||||||||
| Output Voltage | 12 | 24 | 48 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 12-14V | 24-28V | 48-55V | |||||||||||||
| Dimensions | 40x125.2x113.6 | 40x125.2x113.6 | 40x125.2x113.6 | |||||||||||||
| Working Temperature | -20-+70°C | |||||||||||||||
| Satety Standards | UL508, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A | |||||||||||||||
