Home / AC-DC DIN Rail Type / HDR-60

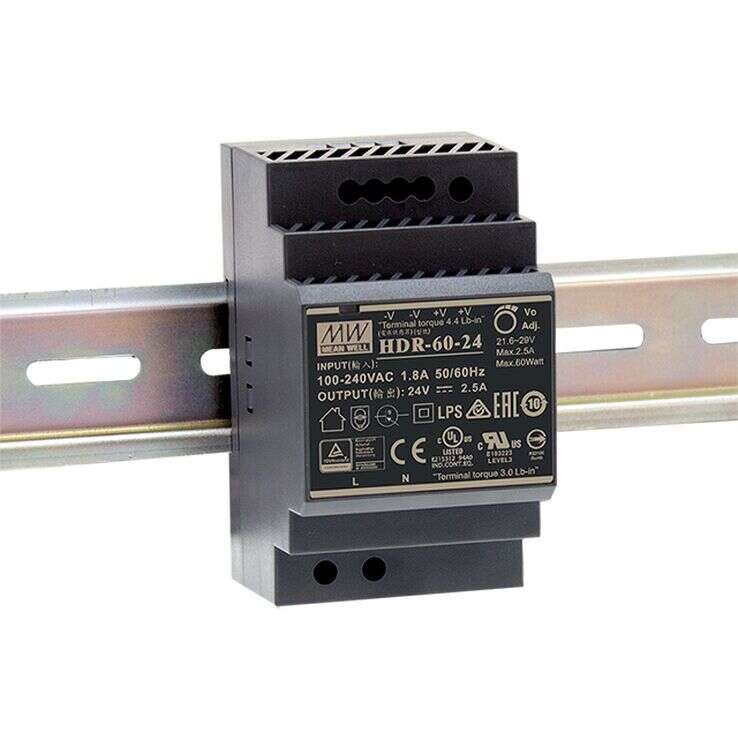

HDR-60 Series
DIN Rail Power Supplies 32.5–60W
HDR-60 Series Main Features:
Ultra slim design with 17.5mm (1SU) width
DC output voltage adjustable
No load power consumption <0.3W
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
HDR-60-5 / HDR-60-12
HDR-60-15 / HDR-60-24
HDR-60-48
MEAN WELL
DIN Rail Power Supplies
Universal input 85-264VAC (277VAC available)
Isolation class II
Pass LPS (Limited power source)
Cooling by free air convection
Din rail TS-35/7.5 or 15 mountable
LED Indicator for power on
3 years warranty
Quote Request
| HDR-60-5 | HDR-60-12 | HDR-60-15 | HDR-60-24 | HDR-60-48 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 32.5 | 54 | 60 | 60 | 60 | |||||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | |||||||||||
| Output Current | 6.5A | 4.5A | 4A | 2.5A | 1.25A | |||||||||||
| Output Voltage | 5 | 12 | 15 | 24 | 48 | |||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | |||||||||||
| DC Output Adjustment | 5.0-5.5V | 10.8-13.8V | 13.5-18V | 21.6-29V | 43.2-55.2V | |||||||||||
| Dimensions | 52.5x90x54.5 | 52.5x90x54.5 | 52.5x90x54.5 | 52.5x90x54.5 | 52.5x90x54.5 | |||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178, TUV EN60950-1 | |||||||||||||||
| EMC Standards | Compliance to EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A | |||||||||||||||
