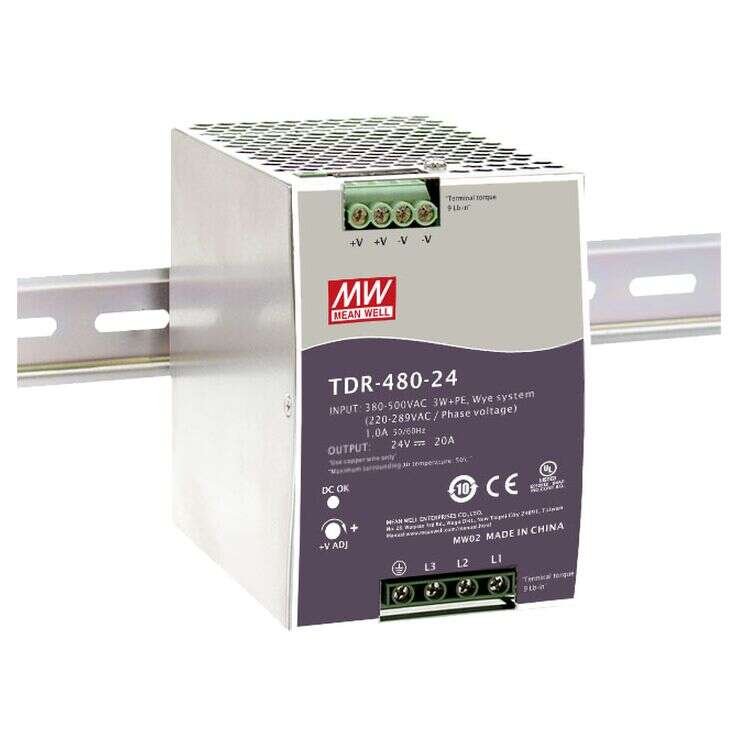

TDR-480 Series
DIN Rail Power Supplies 480W
TDR-480 Series Main Features:
Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)
Width only 85.5mm
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
TDR-480-24 / TDR-480-48
MEAN WELL
DIN Rail Power Supplies
Built-in active PFC function compliance to EN61000-3-2
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
Cooling by free air convection
UL508 (Industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
3 years warranty
Quote Request
[wpforms id="1665" title="false"]
| TDR-480-24 | TDR-480-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 480 | 480 | ||||||||||||||
| Input Voltage | Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC | Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC | ||||||||||||||
| Output Current | 20A | 10A | ||||||||||||||
| Output Voltage | 24 | 48 | ||||||||||||||
| Output Voltage Option | Single | Single | ||||||||||||||
| DC Output Adjustment | 24-28V | 48-55V | ||||||||||||||
| Dimensions | 85.5x125.2x128.5 | 85.5x125.2x128.5 | ||||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL508, IEC60950-1 CB approved by UL | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22), EN55032 (CISPR32) / EN61204-3, EN61000-3-2, EN61000-3-3. Compliance to EN55024, EN60601-1-2, EN61204-3, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
