Home / AC-DC DIN Rail Type / WDR-240

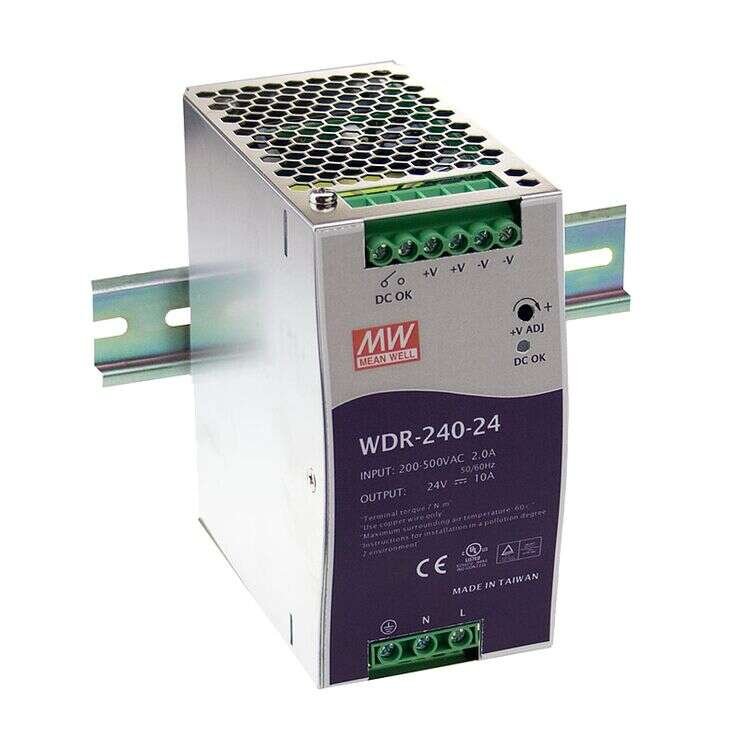

WDR-240 Series
DIN Rail Power Supplies 240W
WDR-240 Series Main Features:
Single and two phase wide input range 180~550VAC
Built-in active PFC
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
WDR-240-24 / WDR-240-48
MEAN WELL
DIN Rail Power Supplies
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty
Quote Request
| WDR-240-24 | WDR-240-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 240 | 240 | ||||||||||||||
| Input Voltage | 180-550VAC 254-780VDC | 180-550VAC 254-780VDC | ||||||||||||||
| Output Current | 0~10A | 0~5.0A | ||||||||||||||
| Output Voltage | 24 | 48 | ||||||||||||||
| Output Voltage Option | Single | Single | ||||||||||||||
| DC Output Adjustment | 24~28V | 48~55V | ||||||||||||||
| Dimensions | 63x125.2x113.5 | 63x125.2x113.5 | ||||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL508, IEC60950-1 CB approved by SIQ; Design refer to GL | |||||||||||||||
| EMC Standards | Compliance to EN55011(CISPR11), EN55022 Class B, EN61000-4-2,3,4,5,6,8,11,EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level | |||||||||||||||
