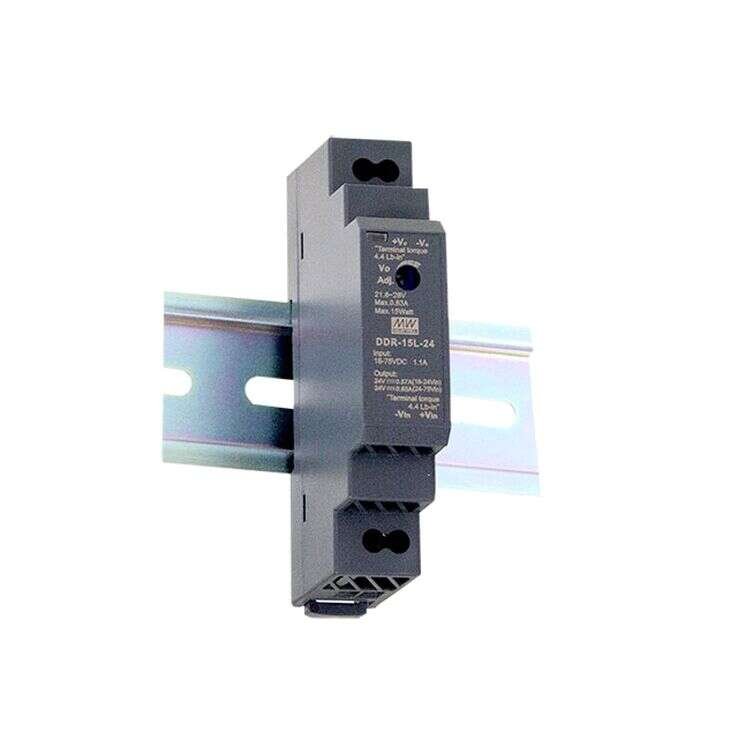

DDR-15 Series
DIN Rail Power Supplies 11.6–15W
DDR-15 Series Main Features:
No minimum load required
Width only 17.5mm (1SU)
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
DDR-15G-3.3 / DDR-15G-5
DDR-15G-12 / DDR-15G-15
DDR-15G-24 / DDR-15L-3.3
DDR-15L-5 / DDR-15L-12
DDR-15L-15 / DDR-15L-24
MEAN WELL
Enclosed Power Supplies
4:1 ultra wide input range
DC output adjustable (+10%)
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
4KVdc I/O isolation (Reinforced isolation)
3 years warranty
Quote Request
| DDR-15G-3.3 | DDR-15G-5 | DDR-15G-12 | DDR-15G-15 | DDR-15G-24 | DDR-15L-3.3 | DDR-15L-5 | DDR-15L-12 | DDR-15L-15 | DDR-15L-24 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 11.6 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | ||||||
| Output Current | 0-3.5A | 0-3A | 0-1.25A | 0-1A | 0-0.63A | 0-4.5A | 0-3A | 0-1.25A | 0-1A | 0-0.63A | ||||||
| Output Voltage | 3.3 | 5 | 12 | 15 | 24 | 3.3 | 5 | 12 | 15 | 24 | ||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | ||||||
| DC Output Adjustment | 3-3.6V | 4.5-5.5V | 9-13.2V | 13.5-16.5V | 21.6-28V | 3-3.6V | 4.5-5.5V | 9-13.2V | 13.5-16.5V | 21.6-28V | ||||||
| Dimensions | 17.5x90x54.5 | 17.5x90x54.5 | 17.5x90x54.5 | 17.5x90x54.5 | 17.5x90x54.5 | 17.5x90x54.5 | 17.5x90x54.5 | 17.5x90x54.5 | 17.5x90x54.5 | 17.5x90x54.5 | ||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | IEC 62368-1 (LVD) approved, Design refer to UL508 | |||||||||||||||
| EMC Standards | Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8 | |||||||||||||||
