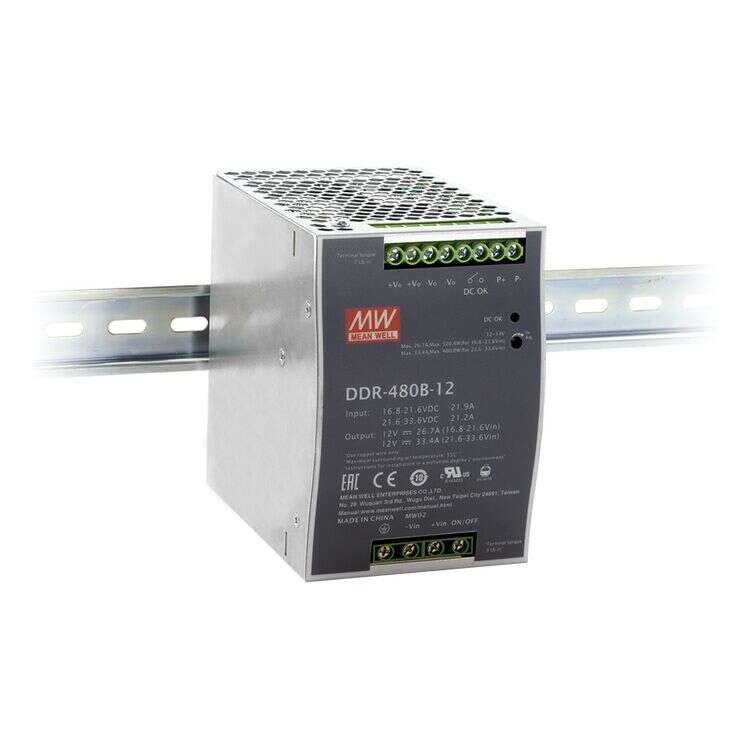

DDR-480 Series
DIN Rail Power Supplies 400.8–480W
DDR-480 Series Main Features:
DDR-480 series is a 480W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (85.5mm), 2:1 wide input voltage, fanless design
Models:
Manufacturer:
Type:
Other features:
DDR-480B-12 / DDR-480B-24
DDR-480B-48 / DDR-480C-12
DDR-480C-24 / DDR-480C-48
DDR-480D-12 / DDR-480D-24
DDR-480D-48
MEAN WELL
DIN Rail Power Supplies
Compliance to EN50155 and EN45545
-2 railway standard
Width only 85.5mm
2:1 wide input range
150% peak load capability
Current sharing up to 1920W(3+1)
Cooling by free air convection
DC output adjustable
DC OK relay contact
3 years warranty
Quote Request
| DDR-480B-12 | DDR-480B-24 | DDR-480B-48 | DDR-480C-12 | DDR-480C-24 | DDR-480C-48 | DDR-480D-12 | DDR-480D-24 | DDR-480D-48 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 400.8 | 480 | 480 | 400.8 | 480 | 480 | 400.8 | 480 | 480 | |||||||
| Input Voltage | 16.8~33.6VDC 14.4~16.8VDC | 16.8~33.6VDC 14.4~16.8VDC | 16.8~33.6VDC 14.4~16.8VDC | 16.8~33.6VDC 14.4~16.8VDC | 16.8~33.6VDC 14.4~16.8VDC | 16.8~33.6VDC 14.4~16.8VDC | 16.8~33.6VDC 14.4~16.8VDC | 16.8~33.6VDC 14.4~16.8VDC | 16.8~33.6VDC 14.4~16.8VDC | |||||||
| Output Current | 33.4A | 20A | 10A | 33.4A | 20A | 10A | 33.4A | 20A | 10A | |||||||
| Output Voltage | 12 | 24 | 48 | 12 | 24 | 48 | 12 | 24 | 48 | |||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 85.5x125.2x128.5 | 85.5x125.2x128.5 | 85.5x125.2x128.5 | 85.5x125.2x128.5 | 85.5x125.2x128.5 | 85.5x125.2x128.5 | 85.5x125.2x128.5 | 85.5x125.2x128.5 | 85.5x125.2x128.5 | |||||||
| Working Temperature | -40~+80°C | |||||||||||||||
| Satety Standards | UL62368-1, IEC 62368-1, AS/NZS 6268-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN55032(CISPR32), EN61000-3-3 | |||||||||||||||
