Home / DC-DC DIN Rail Type / DDR-60

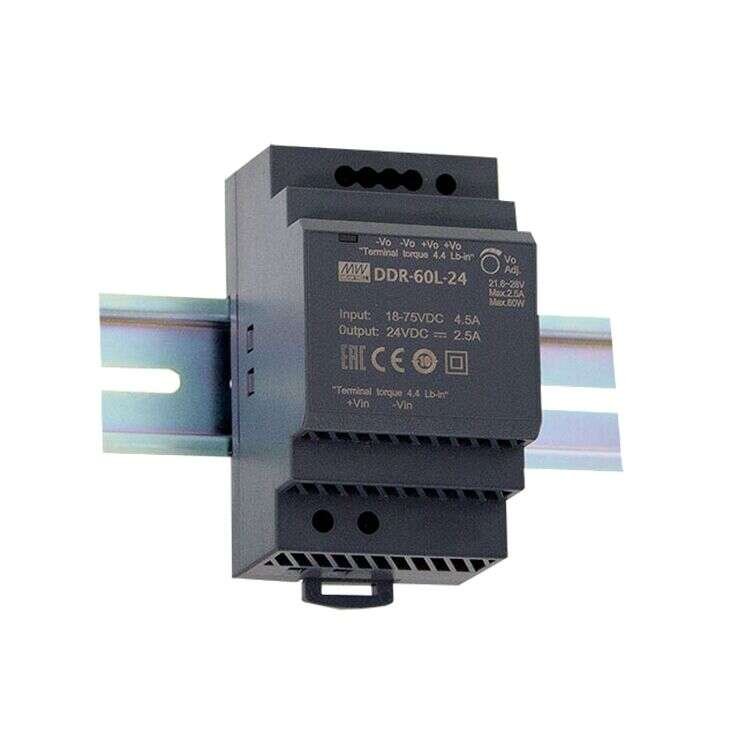

DDR-60 Series
DIN Rail Power Supplies 54~60W
DDR-60 Series Main Features:
No minimum load required
Width only 52.5mm (1SU)
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
DDR-60G-5 / DDR-60G-12
DDR-60G-15 / DDR-60G-24
DDR-60L-5 / DDR-60L-12
DDR-60L-15 / DDR-60L-24
MEAN WELL
DIN Rail Power Supplies
4:1 ultra wide input range
DC output adjustable (+10%)
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
4KVdc I/O isolation (Reinforced isolation)
3 years warranty
Quote Request
| DDR-60G-5 | DDR-60G-12 | DDR-60G-15 | DDR-60G-24 | DDR-60L-5 | DDR-60L-12 | DDR-60L-15 | DDR-60L-24 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 54 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | ||||||||
| Output Current | 0-10.8A | 0-5A | 0-4A | 0-2.5A | 0-12A | 0-5A | 0-4A | 0-2.5A | ||||||||
| Output Voltage | 5 | 12 | 15 | 24 | 5 | 12 | 15 | 24 | ||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 4.5-5.5V | 9-13.2V | 13.5-16.5V | 21.6-28V | 4.5-5.5V | 9-13.2V | 13.5-16.5V | 21.6-28V | ||||||||
| Dimensions | 52.5x90x54.5 | 52.5x90x54.5 | 52.5x90x54.5 | 52.5x90x54.5 | 52.5x90x54.5 | 52.5x90x54.5 | 52.5x90x54.5 | 52.5x90x54.5 | ||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | IEC 62368-1 (LVD) approved, Design refer to UL508 | |||||||||||||||
| EMC Standards | Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8 | |||||||||||||||
