Home / DC-DC DIN Rail Type / DDRH-120

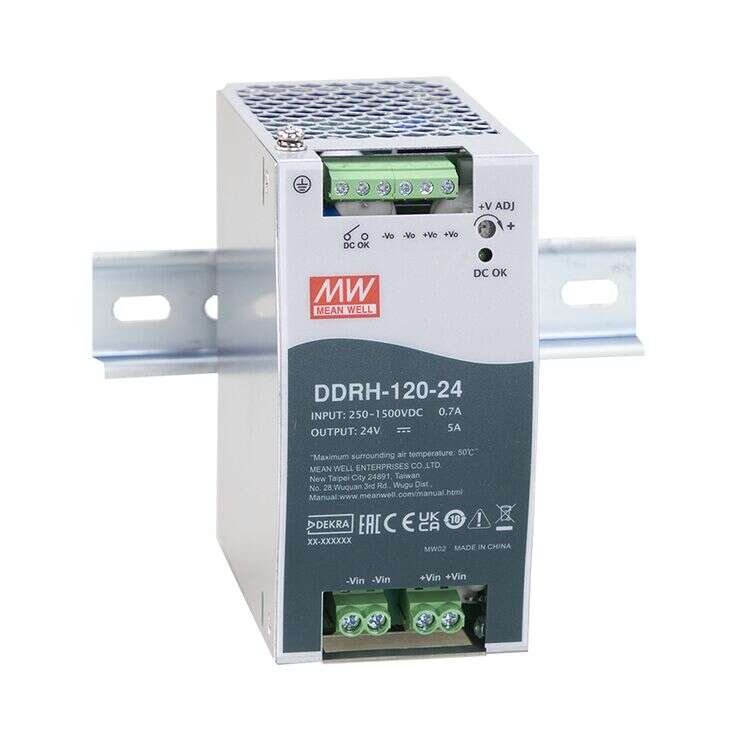

DDRH-120 Series
DC-DC Power Supplies 100.8–120W
DDRH-120 Series Main Features:
DDRH-120 series is a 250~1500Vdc high reliable ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load
Models:
Manufacturer:
Type:
Other features:
DDRH-120-12 / DDRH-120-24
DDRH-120-32 / DDRH-120-48
MEAN WELL
DIN Rail Power Supplies
250~1500Vdc 6:1 ultra-wide input range
Withstand 1700Vdc surge input for 10 seconds
4KVac I/O high isolation (reinforced isolation)
Protections: short circuit/ overload/
over voltage/ over temperature DC input
under voltage/ DC input reverse polarity
Fanless design, cooling by free air convection
Operating altitude up to 5000 meters
DC OK relay contact
3 years warranty
Quote Request
| DDRH-120-12 | DDRH-120-24 | DDRH-120-32 | DDRH-120-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 100.8 | 120 | 120 | 120 | ||||||||||||
| Output Current | 8.4A | 5A | 3.75A | 2.5A | ||||||||||||
| Output Voltage | 12 | 24 | 32 | 48 | ||||||||||||
| Input Voltage | 250~1500Vdc | 250~1500Vdc | 250~1500Vdc | 250~1500Vdc | ||||||||||||
| Dimensions | 63x125.2x115 | 63x125.2x115 | 63x125.2x115 | 63x125.2x115 | ||||||||||||
| Working Temperature | -40~+80℃ | |||||||||||||||
| Satety Standards | IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved; Design refer to UL1741(By request) | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | |||||||||||||||
