Home / DC-DC DIN Rail Type / DDRH-15DR

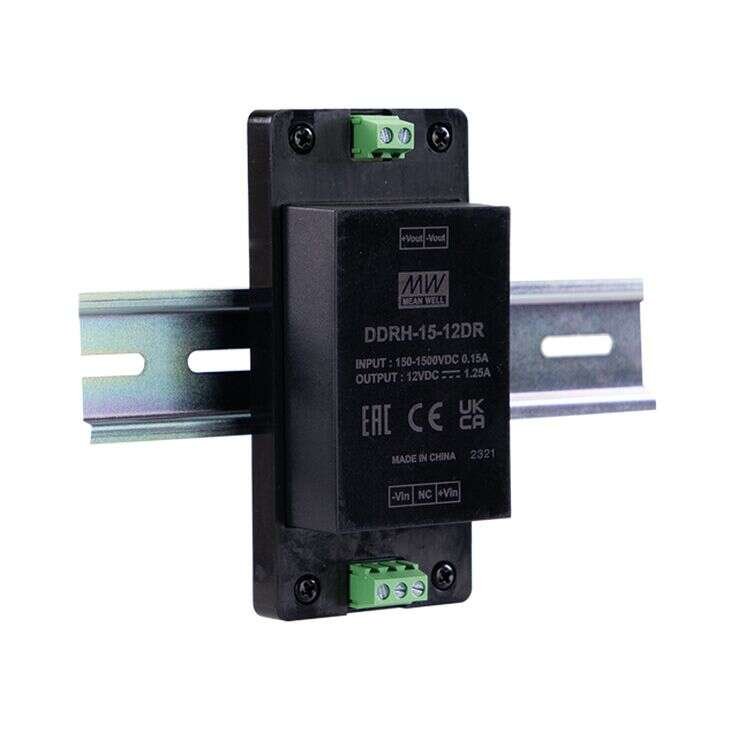

DDRH-15DR Series
DC-DC Power Supplies 10–15W
DDRH-15DR Series Main Features:
DDRH-15 series is a 150~1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load
Models:
Manufacturer:
Type:
Other features:
DDRH-15-05DR / DDRH-15-12DR
DDR-60G-15 / DDRH-15-15DR
DDRH-15-24DR
MEAN WELL
DIN Rail Power Supplies
150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation (Reinforced isolation)
Protections: short circuit/ overload/
over voltage/ DC input under voltage/
DC input reverse Polarity
Fanless design, fully encapsulated, cooling
by free air convection
Operating altitude up to 5000 meters
3 years warranty
Quote Request
| DDRH-15-05 P/ST or DR | DDRH-15-12 P/ST or DR | DDRH-15-15 P/ST or DR | DDRH-15-24 P/ST or DR | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 10 | 15 | 15 | 15 | ||||||||||||
| Output Current | 2A | 1.25A | 1A | 0.625A | ||||||||||||
| Output Voltage | 5 | 12 | 15 | 24 | ||||||||||||
| Input Voltage | 150~1500VDC | 150~1500VDC | 150~1500VDC | 150~1500VDC | ||||||||||||
| Dimensions | 76.2x50.8x25 | 76.2x50.8x25 | 76.2x50.8x25 | 76.2x50.8x25 | ||||||||||||
| Working Temperature | -40~+80℃ | |||||||||||||||
| Satety Standards | IEC62109-1(LVD), EAC TP TC 004 approved; Design refer to UL1741(By requested) | |||||||||||||||
| EMC Standards | BS EN/EN55032 | |||||||||||||||
