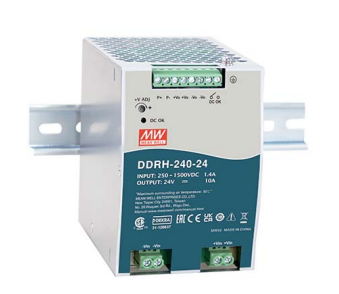

DDRH-240 Series
DC-DC Power Supplies 200.4–240W
DDRH-240 Series Main Features:
DDRH-240 series is a 250~1500Vdc high reliable ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load
Models:
Manufacturer:
Type:
Other features:
DDRH-240-12 / DDRH-240-24
DDRH-240-32 / DDRH-240-48
MEAN WELL
DIN Rail Power Supplies
250~1500Vdc 6:1 ultra-wide input range
Withstand 700Vdc surge input for 10 seconds
4KVac I/O high isolation (Reinforced isolation)
Protections: short circuit/ overload/
over voltage/ DC input under voltage/
DC input reverse Polarity
Fanless design, cooling by free air convection
Operating altitude up to 5000 meters
Current sharing up to 960W(3+1)
3 years warranty
Quote Request
| DDRH-240-12 | DDRH-240-24 | DDRH-240-32 | DDRH-240-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 200.4 | 240 | 240 | 240 | ||||||||||||
| Output Current | 16.7A | 10A | 7.5A | 5A | ||||||||||||
| Output Voltage | 12 | 24 | 32 | 48 | ||||||||||||
| Input Voltage | 250~1500Vdc | 250~1500Vdc | 250~1500Vdc | 250~1500Vdc | ||||||||||||
| Dimensions | 85.5x125.2x129.2 | 85.5x125.2x129.2 | 85.5x125.2x129.2 | 85.5x125.2x129.2 | ||||||||||||
| Working Temperature | -40~+80℃ | |||||||||||||||
| Satety Standards | UL1741, CSA C22.2 No.107.1-16 , IEC62109-1 BS EN/EN62109-1 EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | |||||||||||||||
