Home / DC-DC DIN Rail Type / DDRH-45DR

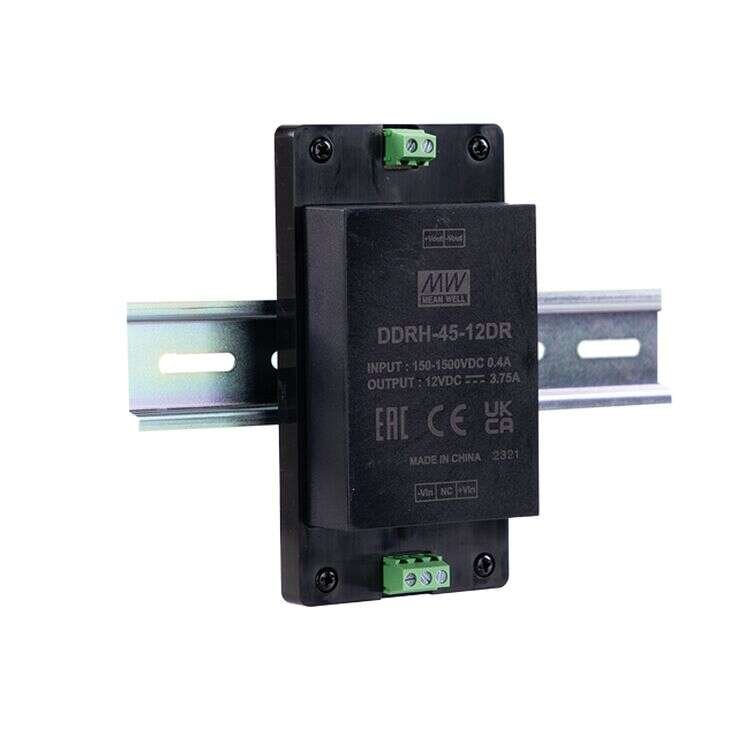

DDRH-45DR Series
DC-DC Power Supplies 45W
DDRH-45DR Series Main Features:
DDRH-45 series is a 150~1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load
Models:
Manufacturer:
Type:
Other features:
DDRH-45-12 P/ST or DR
DDRH-45-15 P/ST or DR
DDRH-45-24 P/ST or DR
DDRH-45-48 P/ST or DR
MEAN WELL
DIN Rail Power Supplies
150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation (Reinforced isolation)
Protections: short circuit/ overload/
over voltage/ DC input under voltage/
DC input reverse Polarity
Fanless design, fully encapsulated, cooling
by free air convection
Operating altitude up to 5000 meters
3 years warranty
Quote Request
| DDRH-45-12 P/ST or DR | DDRH-45-15 P/ST or DR | DDRH-45-24 P/ST or DR | DDRH-45-48 P/ST or DR | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 45 | 45 | 45 | 45 | ||||||||||||
| Output Current | 3.75A | 3A | 1.87A | 0.938A | ||||||||||||
| Output Voltage | 12 | 15 | 24 | 48 | ||||||||||||
| Input Voltage | 150~1500VDC | 150~1500VDC | 150~1500VDC | 150~1500VDC | ||||||||||||
| Dimensions | 89x63.5x25 | 89x63.5x25 | 89x63.5x25 | 89x63.5x25 | ||||||||||||
| Working Temperature | -40~+80℃ | |||||||||||||||
| Satety Standards | IEC62109-1(LVD), EAC TP TC 004 approved; Design refer to UL1741(By requested) | |||||||||||||||
| EMC Standards | BS EN/EN55032 | |||||||||||||||
