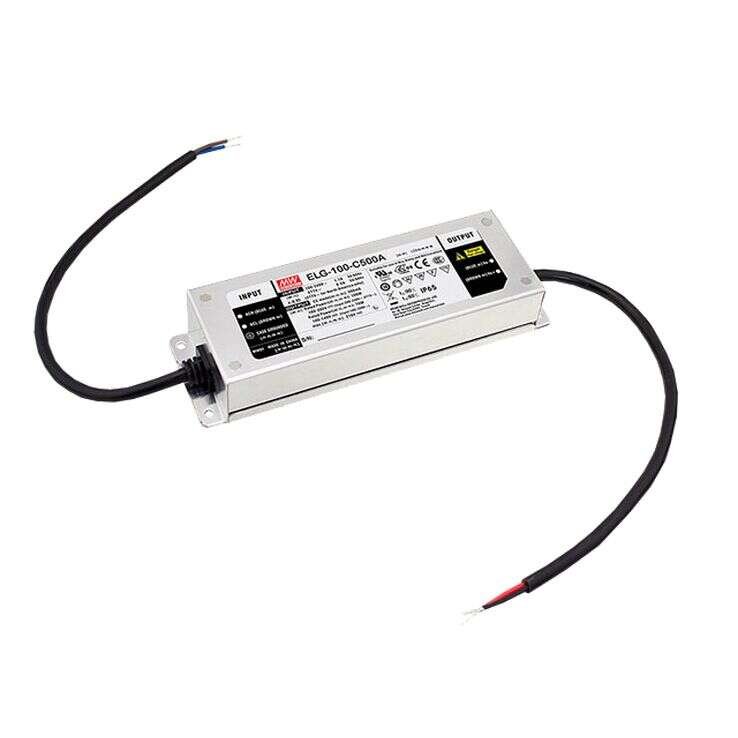

ELG-100-C Series

70~100W Constant Current Mode LED Driver

ELG-100-C

ELG-100-C Series Main Features:

Constant current mode output

Typical lifetime>50000 hours

Protections: Short circuit/ Over Voltage/ Over temperature

Models:

Manufacturer:

Type:

Other features:

ELG-100-C350A-3Y / ELG-100-C500A-3Y
ELG-100-C700A-3Y / ELG-100-C1050A-3Y
ELG-100-C1400A-3Y

MEAN WELL

Indoor Constant Current LED Driver

Built-in active PFC function

No load power consumption <0.5W

IP67 / IP65 rated design for indoor or outdoor installations

Metal housing design

3 in 1 dimming

5 years warranty

Quote Request

    ELG-100-C350A-3YELG-100-C500A-3YELG-100-C700A-3YELG-100-C1050A-3YELG-100-C1400A-3Y
    Wattage100100100100100
    Input Voltage100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC
    Output Voltage297V210V149V105V75V
    Output Voltage OptionSingleSingleSingleSingleSingle
    Dimensions199x63x35.5199x63x35.5199x63x35.5199x63x35.5199x63x35.5
    Working Temperature-40-+85°C
    Satety StandardsUL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004 BIS ; IS15885(for 700A,1050A only);GB19510.1 GB19510.14 , ; IP65 or IP67; KC61347-1,KC61347-2-13 approved
    EMC StandardsCompliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
