Home / LED Driver Outdoor Constant Current / ELG-100U

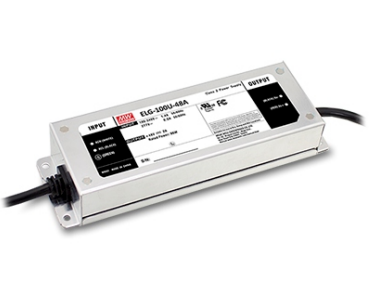

ELG-100U Series
100W Constant Voltage + Constant Current LED Driver
ELG-100U Series Main Features:
Constant current mode output
Typical lifetime>50000 hours
Metal housing design with functional ground
Models:
Manufacturer:
Type:
Other features:
ELG-100U-24A / ELG-100U-36A
ELG-100U-42A / ELG-100U-48A
MEAN WELL
Outdoor Constant Current LED Driver
Built-in active PFC function
No load power consumption <0.5W
Suitable for use in Dry, Damp and Wet Locations
Function options: output adjustable
via potentiometer; 3 in 1 dimming(dim-to-off)
Class 2 power unit
5 years warranty
Quote Request
| ELG-100U-24A | ELG-100U-36A | ELG-100U-42A | ELG-100U-48A | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 96 | 95.76 | 95.76 | 96 | ||||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | ||||||||||||
| Output Voltage | 24V | 36V | 42V | 48V | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| Dimensions | 199x63x35.5 | 199x63x35.5 | 199x63x35.5 | 199x63x35.5 | ||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750 (type”HL” ),CSA C22.22 No.250.13-12 approved | |||||||||||||||
| EMC Standards | Compliance to FCC part 15 class B | |||||||||||||||
