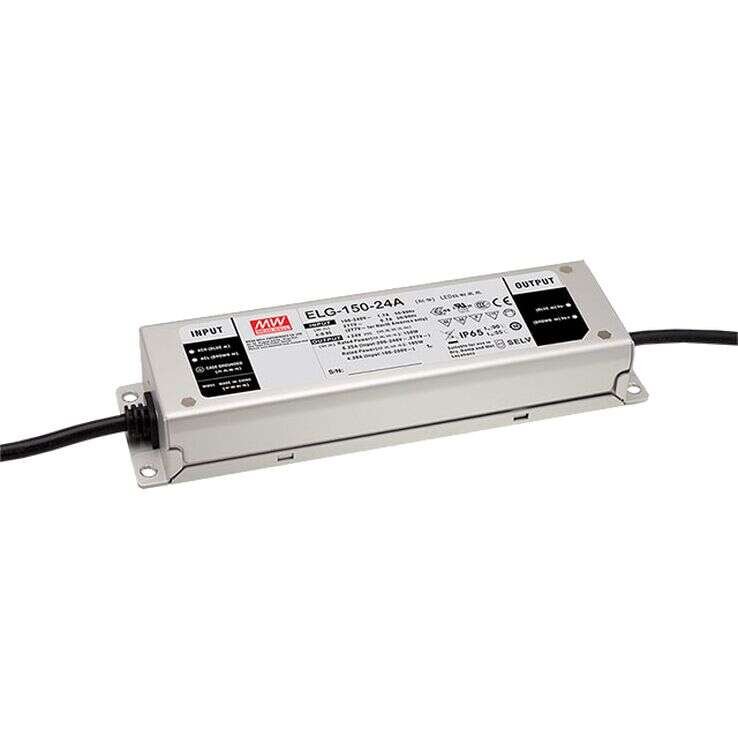

ELG-150 Series
84~150W Constant Voltage + Constant Current LED Driver
ELG-150 Series Main Features:
Constant Voltage + Constant Current mode output
Typical lifetime >50000 hours
Models:
Manufacturer:
Type:
Other features:
ELG-150-12A-3Y / ELG-150-24A-3Y
ELG-150-36A-3Y / ELG-150-42A-3Y
ELG-150-48A-3Y / ELG-150-54A-3Y
MEAN WELL
Outdoor Constant Current LED Driver
Metal housing design with functional Ground
Built-in active PFC function
No load/Standby power consumption <0.5W
IP67/IP65 rating for indoor or outside installations
Function options: output adjustable via potentiometer
3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
5 years warranty
Quote Request
| ELG-150-12A-3Y | ELG-150-24A-3Y | ELG-150-36A-3Y | ELG-150-42A-3Y | ELG-150-48A-3Y | ELG-150-54A-3Y | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 120 | 150 | 150 | 150 | 150 | 150 | ||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | ||||||||||
| Output Voltage | 12V | 24V | 36V | 42V | 48V | 54V | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| Dimensions | 219x63x35.5 | 219x63x35.5 | 219x63x35.5 | 219x63x35.5 | 219x63x35.5 | 219x63x35.5 | ||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB19510.1,GB19510.14; IP65 or IP67; KC61347-1,KC61347-2-13 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547 | |||||||||||||||
