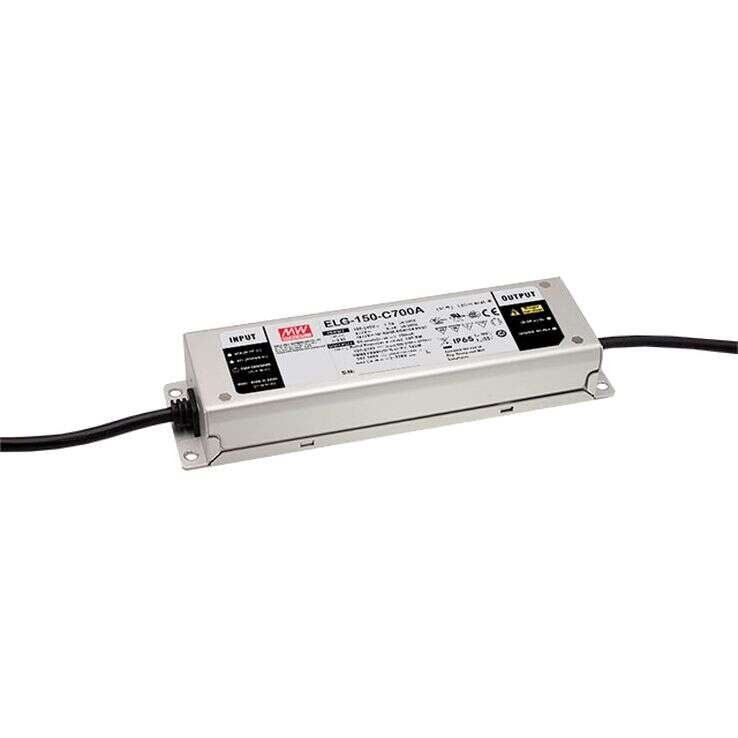

ELG-150-C Series

105~150W Constant Current Mode LED Driver

ELG-150-C

ELG-150-C Series Main Features:

Constant current mode output

Typical lifetime>50000 hours

Protections: Short circuit/ Over Voltage/ Over temperature

Models:

Manufacturer:

Type:

Other features:

ELG-150-C350A-3Y / ELG-150-C700A-3Y
ELG-150-C1050A-3Y / ELG-150-C1400A-3Y
ELG-150-C1750A-3Y / ELG-150-C2100A-3Y

MEAN WELL

Indoor Constant Current LED Driver

Built-in active PFC function

No load power consumption <0.5W

IP67/IP65 rating for indoor or outside installations

Metal housing design

3 in 1 dimming

5 years warranty

Quote Request

    ELG-150-C500A-3YELG-150-C700A-3YELG-150-C1050A-3YELG-150-C1400A-3YELG-150-C1750A-3YELG-150-C2100A-3Y
    Wattage105105105105105
    Input Voltage100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC
    Output Voltage OptionSingleSingleSingleSingleSingleSingle
    Dimensions219x63x35.5219x63x35.5219x63x35.5219x63x35.5219x63x35.5219x63x35.5
    Working Temperature-40-+90°C
    Satety StandardsUL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14,EAC TP TC 004,BIS IS15885(for 700A,1050A,700DA only), IP65 or IP67; KC61347-1,KC61347-2-13 approved
    EMC StandardsCompliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
