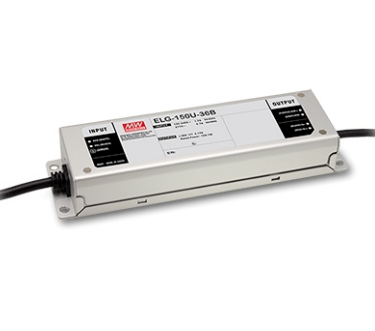

ELG-150U Series
150W Constant Voltage + Constant Current LED Driver
ELG-150U Series Main Features:
Constant current mode output
Typical lifetime>50000 hours
Metal housing design with functional ground
Models:
Manufacturer:
Type:
Other features:
ELG-150U-24A / ELG-150U-36A
ELG-150U-48A
MEAN WELL
Outdoor Constant Current LED Driver
Built-in active PFC function
No load power consumption <0.5W
Suitable for use in Dry, Damp and Wet Locations
Function options: output adjustable
via potentiometer; 3 in 1 dimming(dim-to-off)
5 years warranty
Quote Request
| ELG-150U-24A | ELG-150U-36A | ELG-150U-48A | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 150 | 150.1 | 150.2 | |||||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | |||||||||||||
| Output Voltage | 24V | 36V | 48V | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| Dimensions | 219x63x35.5 | 219x63x35.5 | 219x63x35.5 | |||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | Design refer to UL8750 (type”HL” ),CSA C22.22 No.250.13-12 | |||||||||||||||
| EMC Standards | Design refer to FCC part 15 class A | |||||||||||||||
