Home / LED Driver Indoor Constant Current / ELG-200-C

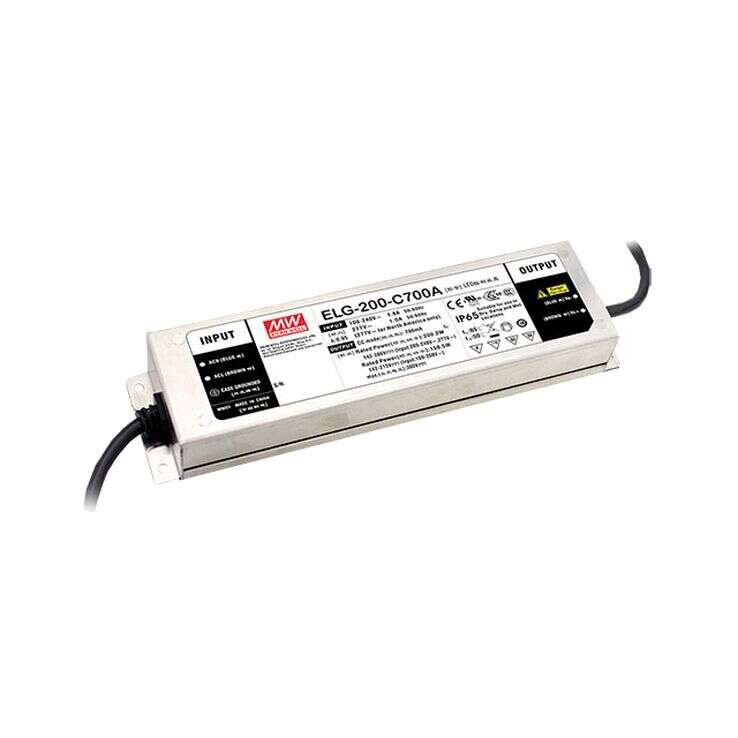

ELG-200-C Series
150~200W Constant Current Mode LED Driver
ELG-200-C Series Main Features:
Constant current mode output
Metal housing design with functional ground
Protections: Short circuit/ Over Voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
ELG-200-C700A-3Y / ELG-200-C1050A-3Y
ELG-200-C1400A-3Y / ELG-200-C1750A-3Y
ELG-200-C2100A-3Y
MEAN WELL
Indoor Constant Current LED Driver
Built-in active PFC function
No load power consumption <0.5W
IP67/IP65 rating for indoor or outside installations
Function Options: output adjustable
via potentiometer: 3 in 1 dimming (dim-to-
off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty
Quote Request
| ELG-200-C700A-3Y | ELG-200-C1050A-3Y | ELG-200-C1400A-3Y | ELG-200-C1750A-3Y | ELG-200-C2100A-3Y | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 200 | 200 | 200 | 200 | 200 | |||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | |||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | |||||||||||
| Output Current | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | |||||||||||
| Dimensions | 244x71x37.5 | 244x71x37.5 | 244x71x37.5 | 244x71x37.5 | 244x71x37.5 | |||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB19510.14,GB19510.1;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547 | |||||||||||||||
