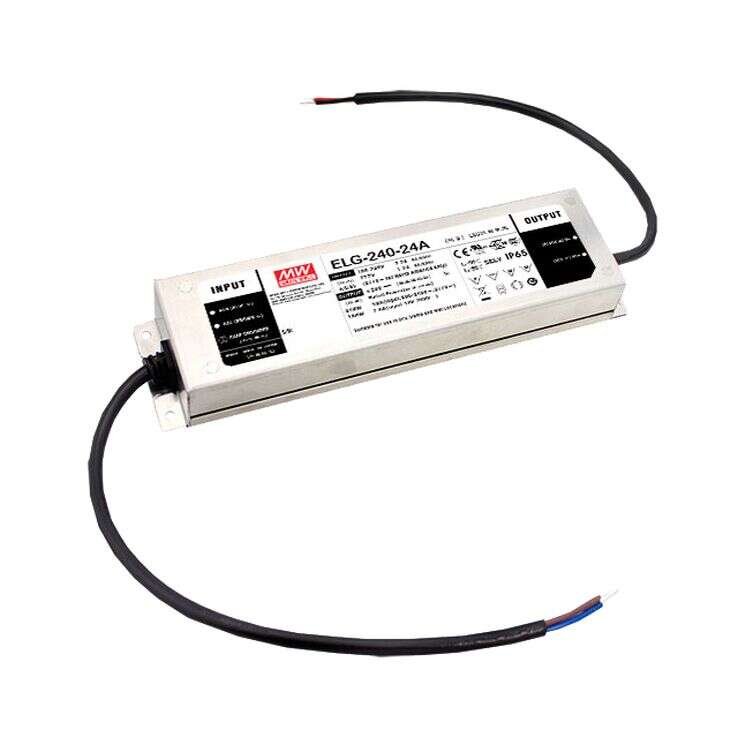

ELG-240 Series
180~240W Constant Voltage + Constant Current LED Driver
ELG-240 Series Main Features:
Constant current mode output
Metal housing design
Protections: Short circuit/ Over Voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
ELG-240-24A-3Y / ELG-240-36A-3Y
ELG-240-42A-3Y / ELG-240-48A-3Y
ELG-240-54A-3Y
MEAN WELL
Outdoor Constant Current LED Driver
Built-in active PFC function
No load power consumption <0.5W
IP67 / IP65 rated design for indoor
or outdoor installations
Typical lifetime>50000 hours
3 in 1 dimming
5 years warranty
Quote Request
| ELG-240-24A-3Y | ELG-240-36A-3Y | ELG-240-42A-3Y | ELG-240-48A-3Y | ELG-240-54A-3Y | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 240 | 239.76 | 239.82 | 240 | 240.3 | |||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | |||||||||||
| Output Voltage | 24V | 36V | 42V | 48V | 54V | |||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 244x71x37.5 | 244x71x37.5 | 244x71x37.5 | 244x71x37.5 | 244x71x37.5 | |||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42B/48/48A/48B/54/54A/54ADA/54B only); GB19510.14,GB19510.1; IP65 or IP67;KC61347-1,KC61347-2-13 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547 | |||||||||||||||
