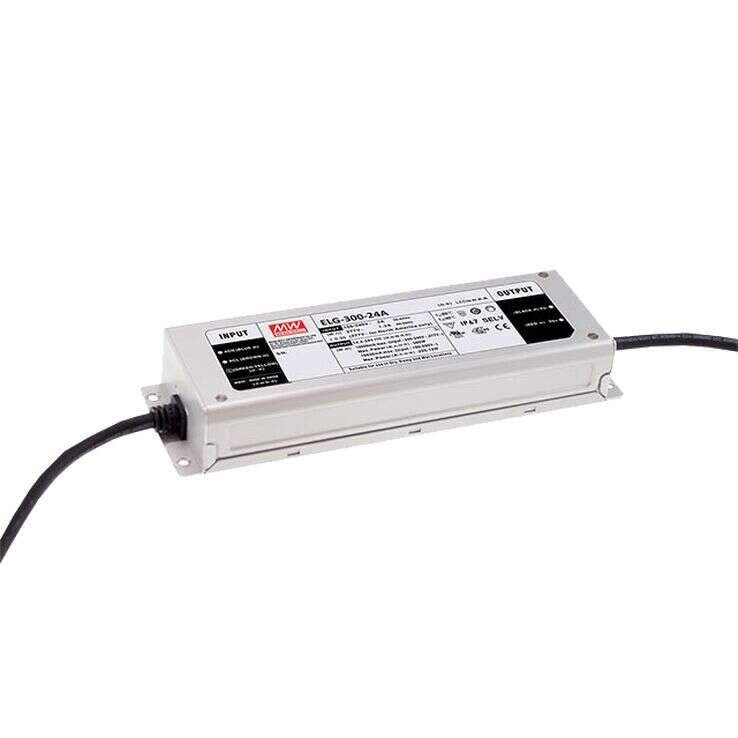

ELG-300 Series
300W Constant Voltage + Constant Current LED Driver
ELG-300 Series Main Features:
ELG-300 series is a 300W LED driver featuring with constant current and constant voltage mode design. ELG-300 operates from 100~305VAC and offers CV mode or CC mode applications
Models:
Manufacturer:
Type:
Other features:
ELG-300-12A-3Y / ELG-300-24A-3Y
MEAN WELL
Outdoor Constant Current LED Driver
Constant Voltage + Constant Current
mode output
Protection Functions: OCP, SCP, OVP, OTP
IP67 rating for indoor or outdoor installations
Output adjustable via potentiometer
Typical lifetime >50000 hours
5 years warranty
Quote Request
| ELG-300-12A-3Y | ELG-300-24A-3Y | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 264 | 300 | ||||||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | ||||||||||||||
| Output Voltage | 12V | 24V | ||||||||||||||
| Output Voltage Option | Single | Single | ||||||||||||||
| Dimensions | 246x77x39.5 | 246x77x39.5 | ||||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”)(Except for 12V), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004; GB19510.1,GB19510.14; KC61347-1,KC61347-2-13; IS15885(Part2/Sec13),IP67 approved; Designed refer to AS/NZS 61347 & AS/NZS 60598 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3;GB/T 17743,GB17625.1;KN15 | |||||||||||||||
