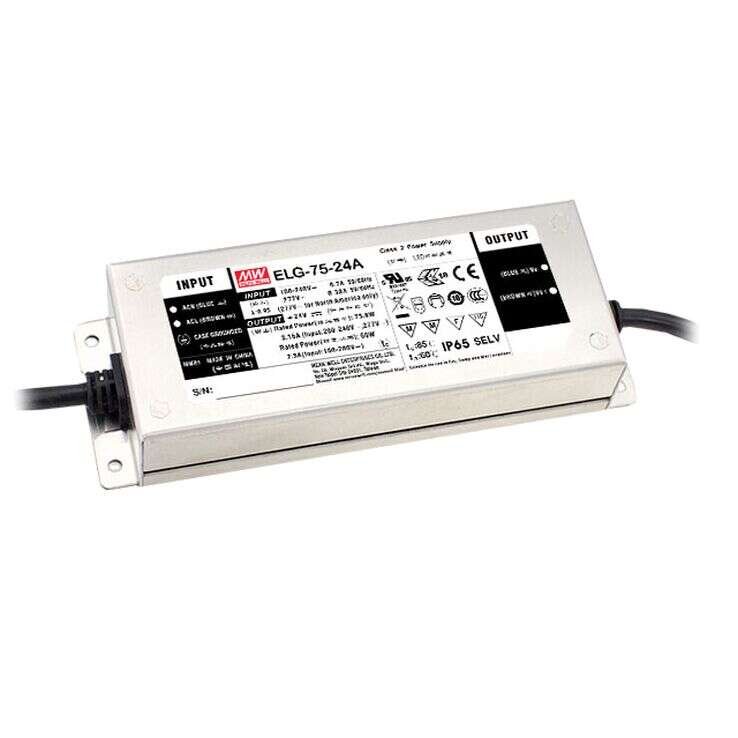

ELG-75 Series
48~75W Constant Voltage + Constant Current LED Driver
ELG-75 Series Main Features:
ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V
Models:
Manufacturer:
Type:
Other features:
ELG-75-12A-3Y / ELG-75-24A-3Y
ELG-75-36A-3Y / ELG-75-42A-3Y
ELG-75-48A-3Y
MEAN WELL
Outdoor Constant Current LED Driver
Metal housing design with functional Ground
Built-in active PFC function
No load/Standby power consumption <0.5W
IP67/IP65 rating for indoor or outside installations
Function options: output adjustable via potentiometer
3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime >50000 hours
5 years warranty
Quote Request
| ELG-75-12A-3Y | ELG-75-24A-3Y | ELG-75-36A-3Y | ELG-75-42A-3Y | ELG-75-48A-3Y | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 75.6 | 75.6 | 75.6 | 76.8 | |||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | |||||||||||
| Output Voltage | 12V | 24V | 36V | 42V | 48V | |||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 180x63x35.5 | 180x63x35.5 | 180x63x35.5 | 180x63x35.5 | 180x63x35.5 | |||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 12A/12DA/12B/24A/24B/24DA/36A/36B/42A/42B/48A/48B only); IP65 or IP67; GB19510.1, GB19510.14; KC61347-1,KC61347-2-13 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547 | |||||||||||||||
