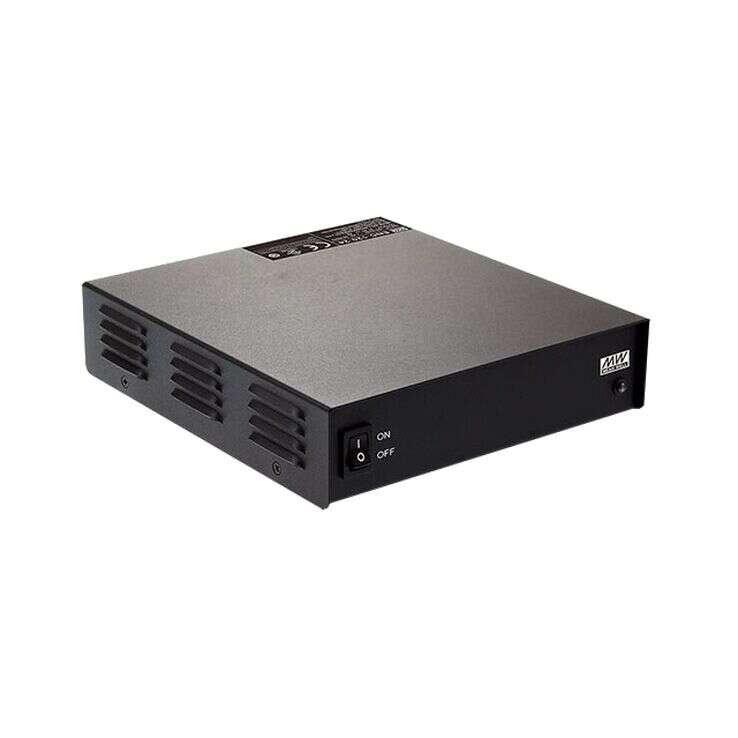

ENC-240 Series
Chargers 230.4W
ENC-240 Series Main Features:
Protections: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery over voltage / Battery reverse polarity protection
Models:
Manufacturer:
Type:
Other features:
ENP-240-12 / ENP-240-24
ENP-240-48
MEAN WELL
Charger
Charger for lead-acid batteries and Li
-ion batteries
Built-in 3 stage programmable charg
-ing curve
Universal AC Input / Full range
Built-in active PFC function
Fanless design, cooling by free air convection
Built-in temperature compensation function
3 years warranty
Quote Request
| ENC-240-12 | ENC-240-24 | ENC-240-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 230.4 | 230.4 | 230.4 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 16A | 8A | 4A | |||||||||||||
| Output Voltage | 14.4V | 28.8V | 57.6V | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 9~15V | 18-30V | 36-60V | |||||||||||||
| Dimensions | 192x178x45.5 | 192x178x45.5 | 192x178x45.5 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | IEC60950-1, UL60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 class B Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024 | |||||||||||||||
