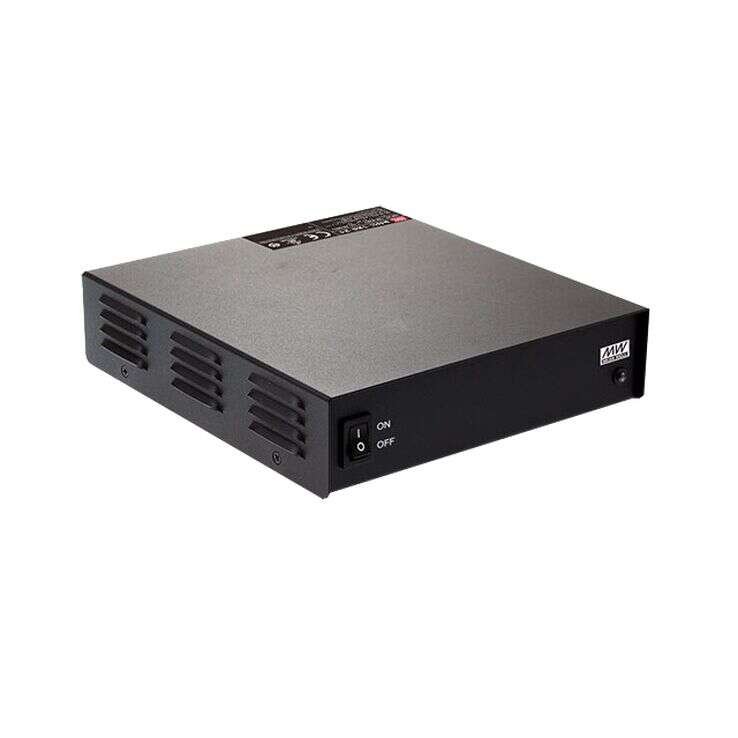

ENP-180 Series
External Power Supplies 179–182W
ENP-180 Series Main Features:
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over Temperature
Models:
Manufacturer:
Type:
Other features:
ENP-180-12 / ENP-180-24
ENP-180-48
MEAN WELL
Charger
Energy efficiency Level VI
Universal AC Input / Full range
Comply with EISA 2007/DoE, NRCan and
EU ErP
No load power consumption <0.15W
125% peak load capability
Fanless design, cooling by free air convection
3 years warranty
Quote Request
| ENP-180-12 | ENP-180-24 | ENP-180-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 179 | 179 | 182 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 13.8A | 27.6A | 55.2A | |||||||||||||
| Output Voltage | 13.8V | 27.6V | 55.2V | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 11.5~15V | 23.5-30V | 47.5-58.8V | |||||||||||||
| Dimensions | 192x178x45.5 | 192x178x45.5 | 192x178x45.5 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | IEC60950-1, UL60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 class B Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024 | |||||||||||||||
