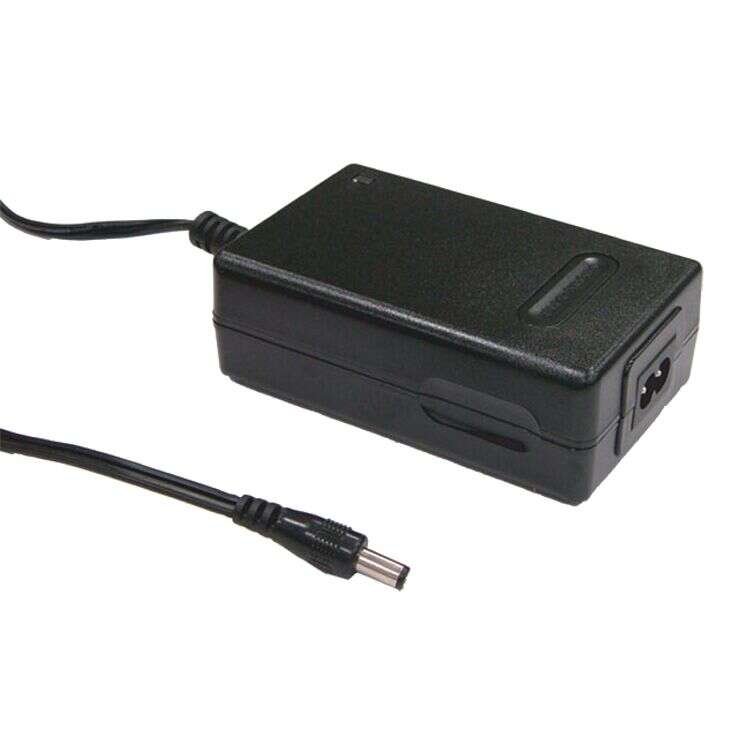

GC30B Series
Chargers 30W
GC30B Series Main Features:
No load power consumption < 1W
Protections: Short circuit / Overload / Over voltage / Over Temperature
Models:
Manufacturer:
Type:
Other features:
GC30B-0P1J / GC30B-1P1J
GC30B-2P1J / GC30B-4P1J
GC30B-5P1J / GC30B-6P1J
GC30B-11P1J
MEAN WELL
Charger
Universal AC input / Full range
Class II Power (without earth pin)
Constant current and voltage (CC, CV mode)
High reliability
Suitable for high surge current equipment
2 color LED indicator for charging status
Fully enclosed plastic case
2 years warranty
Quote Request
| GC30B-0P1J | GC30B-1P1J | GC30B-2P1J | GC30B-4P1J | GC30B-5P1J | GC30B-6P1J | GC30B-11P1J | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||
| Output Current | 0~4A | 0~3.99A | 0~3A | 0~2.09A | 0~1.60A | 0~1.04A | 0~3.0A | |||||||||
| Output Voltage | 4.2V | 5.6V | 8.4V | 14.3V | 16.8V | 28.6V | 7.2V | |||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | |||||||||
| DC Output Adjustment | 3.6~4.4V | 5-5.8V | 6.5-7.5V | 7.7~8.6V | 13.5-14.5V | 16-17V | 27.1-28.8V | |||||||||
| Dimensions | 108x67x36 | 108x67x36 | 108x67x36 | 108x67x36 | 108x67x36 | 108x67x36 | 108x67x36 | |||||||||
| Working Temperature | -10~+50°C | |||||||||||||||
| Satety Standards | UL60950-1, CSA C22.2, TUV EN60950-1 | |||||||||||||||
| EMC Standards | EN55014-1, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11 | |||||||||||||||
