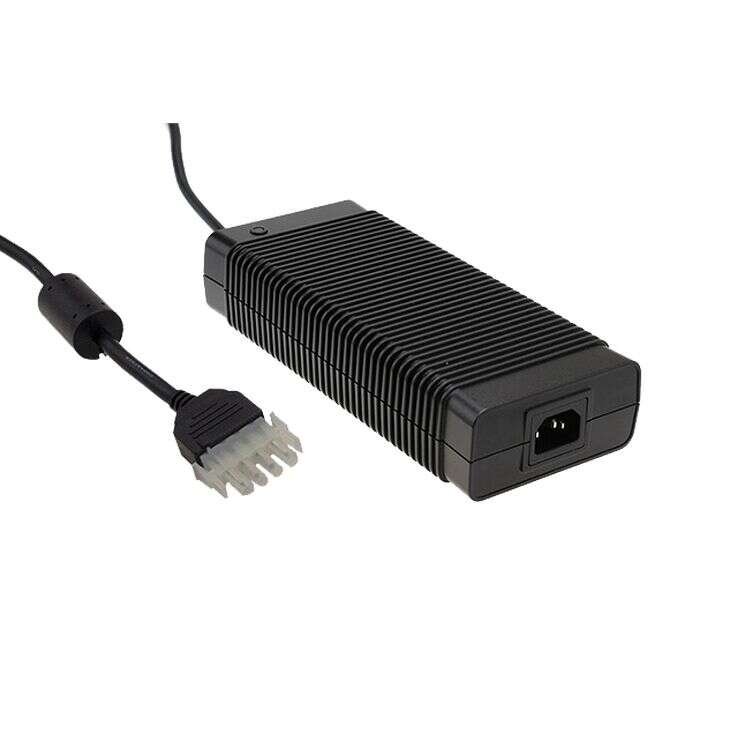

GC330 Series
Chargers 326W
GC120 Series Main Features:
No load power consumption<1W
Protections: Short circuit / Overload / Over voltage / Over Temperature
2 stage charging characteristic
Models:
Manufacturer:
Type:
Other features:
GC330A36-C4P / GC330A48-C4P
MEAN WELL
Charger
3 pole AC inlet IEC320-C14
Universal AC Input / Full range
Cooling by free air convection
Class I power (with earth pin)
Fully enclosed plastic case
2 color LED indicator for charging status
Built-in active PFC function, PF>0.90
2 years warranty
Quote Request
| GC330A36-C4P | GC330A48-C4P | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 326 | 326 | ||||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||||||
| Output Current | 6.4~8.0A | 4.8~6.0A | ||||||||||||||
| Output Voltage | 42V | 54V | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| Dimensions | 220x95x46 | 220x95x46 | 220x95x46 | |||||||||||||
| Working Temperature | 0~+40°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60335-2-29 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 class B / CISPR22 class B, EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A | |||||||||||||||
