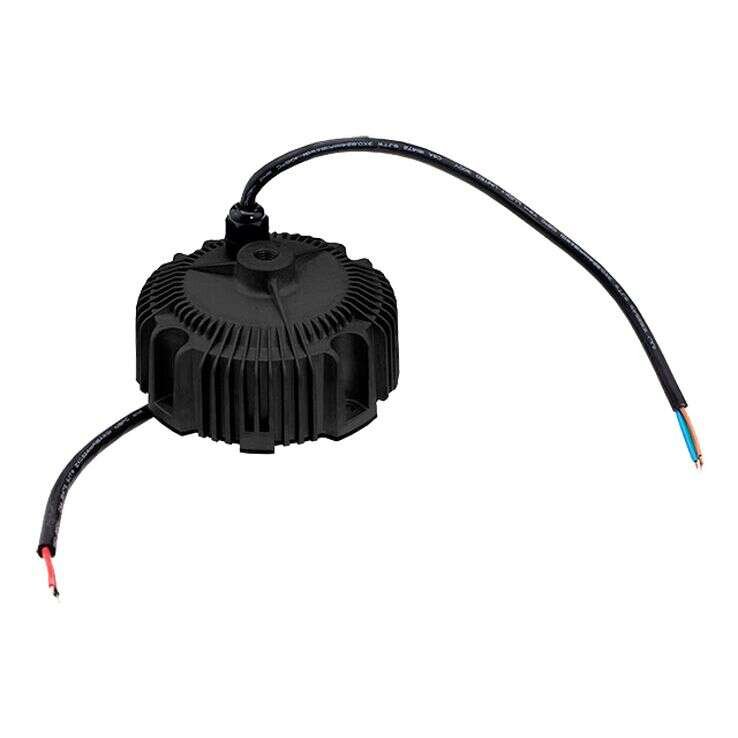

HBG-100(DA) Series
100W Constant Current Mode LED Driver
HBG-100(DA) Series Main Features:
IP67 design for indoor or outdoor installations
Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
Class 2 power unit
Models:
Manufacturer:
Type:
Other features:
HBG-100-24DA / HBG-100-36DA
HBG-100-48DA / HBG-100-60DA
MEAN WELL
Outdoor Circular Shape Design LED Driver
Protections: Short circuit / Over current
/ Over voltage / Over temperature
Built-in active PFC function
Universal AC input (up to 305VAC) /
Full range
High efficiency up to 91.5%
Output current adjustable through output cable
Suitable for dry, damp and wet location
Suitable for LED lighting and street light
-ing applications
Meet 4KV surge immunity level
5 years warranty
Quote Request
| HBG-100-24DA | HBG-100-36DA | HBG-100-48DA | HBG-100-60DA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 96 | 97 | 96 | 96 | ||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||||
| Output Voltage | 24 | 36 | 48 | 60 | ||||||||||||
| Output Current | 4A | 2.7A | 2A | 1.6A | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 2.4~4A | 1.62~2.7A | 1.2A~2A | 1.0A~1.6A | ||||||||||||
| Dimensions | 130x66.5 | 130x66.5 | 130x66.5 | 130x66.5 | ||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 ,GB17625.1, EAC TP TC 020 | |||||||||||||||
