Home / LED Driver Indoor With Dimming / HBG-100P(DA)

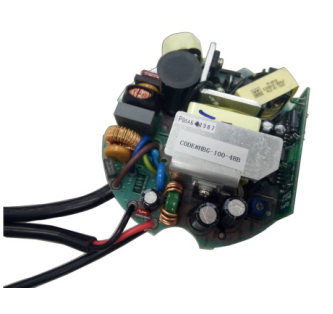

HBG-100P(DA) Series

100W Constant Current Mode LED Driver

HBG-100PDA

HBG-100P(DA) Series Main Features:

Constant Current mode output

Protections: Over current / Over voltage / Over temperature

Models:

Manufacturer:

Type:

Other features:

HBG-100P-36 / HBG-100P-48
HBG-100P-60

MEAN WELL

Indoor With Dimming LED Driver

Function options: output adjustable
via potentiometer; 3 in 1 dimming

Built-in active PFC function

Typical lifetime >50000hours

Quote Request

    HBG-100P-36HBG-100P-48HBG-100P-60
    Wattage97.29696
    Input Voltage90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC
    Output Voltage37V49V62V
    Output Current2.7A2A1.6A
    Output Voltage OptionsSingleSingleSingle
    DC Output Adjustment1.62~2.7A1.2~2A1.0~1.6A
    DC Output Adjustment21.6~36V28.8~48V36~62V
    Dimensions110x60.5110x60.5110x60.5
    Working Temperature-40-+45°C
    Satety StandardsUL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1, GB19510.14,EAC TP TC 004 approved
    EMC StandardsCompliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020
