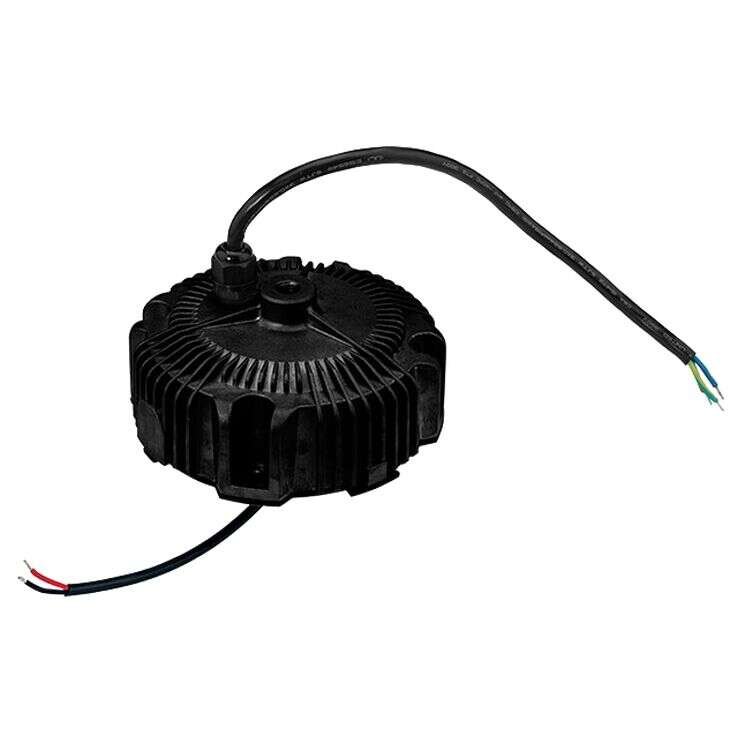

HBG-160(DA) Series
160W Constant Voltage + Constant Current LED Driver
HBG-160(DA) Series Main Features:
IP67 design for indoor or outdoor installations
Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
Models:
Manufacturer:
Type:
Other features:
HBG-160-24DA / HBG-160-36DA
HBG-160-48DA / HBG-160-60DA
MEAN WELL
Outdoor Circular Shape Design LED Driver
Protections: Short circuit / Over current
/ Over voltage / Over temperature
Built-in active PFC, PF>0.9 for 60% of load
or higher
Universal AC input (up to 305VAC) /
Full range
High efficiency up to 93.5%
Output current adjustable through out
-put cable or internal potentiometer
Suitable for LED lighting and street light
-ing applications
5 years warranty
Quote Request
| HBG-160-24DA | HBG-160-36DA | HBG-160-48DA | HBG-160-60DA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 156 | 158.4 | 158.4 | 156 | ||||||||||||
| Input Voltage | 90~305VAC 127~417VDC | 90~305VAC 127~417VDC | 90~305VAC 127~417VDC | 90~305VAC 127~417VDC | ||||||||||||
| Output Voltage | 24V | 36V | 48V | 60V | ||||||||||||
| Output Current | 6.5A | 4.4A | 3.3A | 2.6A | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 3.9~6.5A | 2.6~4.4A | 1.98A~3.3A | 1.6A~2.6A | ||||||||||||
| Dimensions | 151.68x66.5 | 151.68x66.5 | 151.68x66.5 | 151.68x66.5 | ||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB19510.1,GB19510.14, IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020 | |||||||||||||||
