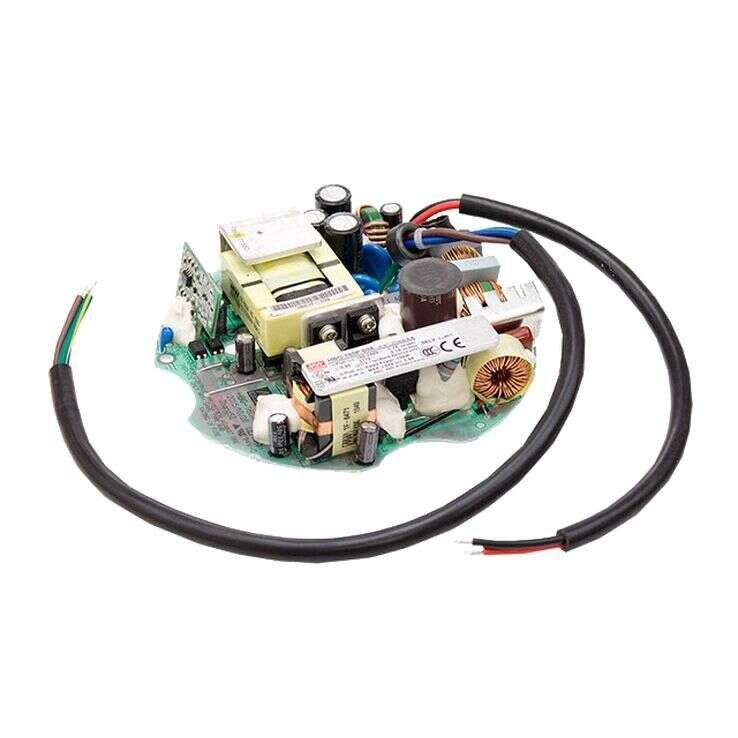

HBG-160P(DA) Series
160W Constant Voltage + Constant Current LED Driver
HBG-160P(DA) Series Main Features:
Constant Current + Constant Voltage mode output
Circular PCB type design
Models:
Manufacturer:
Type:
Other features:
HBG-160P-36 / HBG-160P-48
HBG-160P-60
MEAN WELL
Indoor With Dimming LED Driver
Protections: Over current / Over voltage
/ Over temperature
Function options: output adjustable
via potentiometer; 3 in 1 dimming
Built-in active PFC function
5 years warranty
Quote Request
| HBG-160P-36 | HBG-160P-48 | HBG-160P-60 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 158.4 | 158.4 | 156 | |||||||||||||
| Input Voltage | 90~305VAC 127~417VDC | 90~305VAC 127~417VDC | 90~305VAC 127~417VDC | |||||||||||||
| Output Voltage | 36 | 48 | 60 | |||||||||||||
| Output Current | 4.4A | 3.3A | 2.6A | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 2.6~4.4A | 1.98~3.3A | 1.6~2.6A | |||||||||||||
| Working Temperature | -40-+45°C | |||||||||||||||
| Satety Standards | UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1, GB19510.14, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load ≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020 | |||||||||||||||
