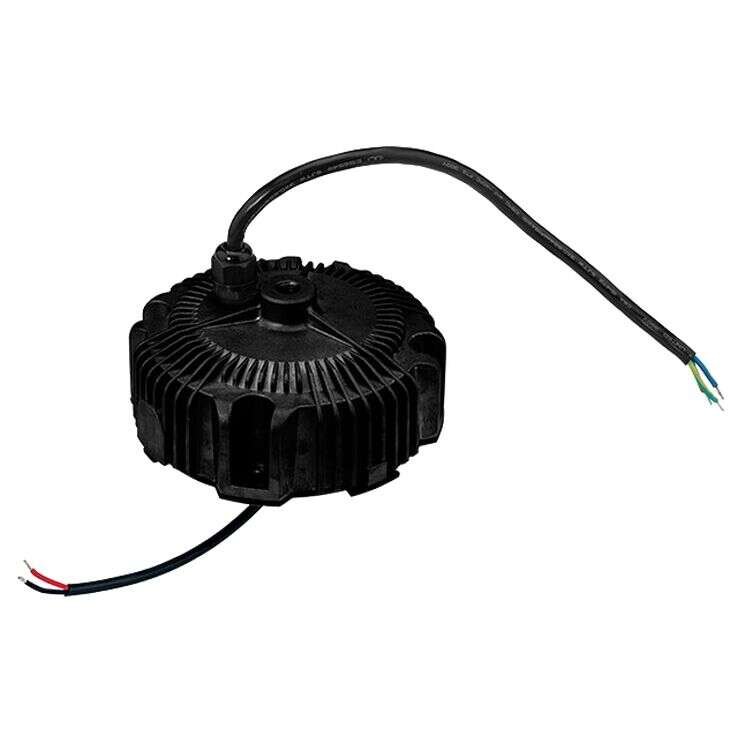

HBG-200(DA) Series
200W Constant Voltage + Constant Current LED Driver
HBG-200(DA) Series Main Features:
Constant Voltage + Constant Current mode output
Circular metal housing with class I design
Built-in active PFC function
Models:
Manufacturer:
Type:
Other features:
HBG-200-36DA / HBG-200-48DA
HBG-200-60DA
MEAN WELL
Outdoor Circular Shape Design LED Driver
IP67/IP65 rating for indoor or outdoor installations
Function options: output adjustable
via potentiometer; 3 in 1 dimming;DALI
Typical lifetime>50000 hours
5 years warranty
Quote Request
| HBG-200-36DA | HBG-200-48DA | HBG-200-60DA | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 200 | 200 | 200 | |||||||||||||
| Input Voltage | 90~305VAC 127~417VDC | 90~305VAC 127~417VDC | 90~305VAC 127~417VDC | |||||||||||||
| Output Voltage | 36 | 48 | 60 | |||||||||||||
| Output Current | 5.5A | 4.1A | 3.3A | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 3.3~5.5A | 2.46~4.1A | 1.98A~3.3A | |||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”),CSA C22.2 No.250.13-12,ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1; EAC TP TC 004,IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020 | |||||||||||||||
