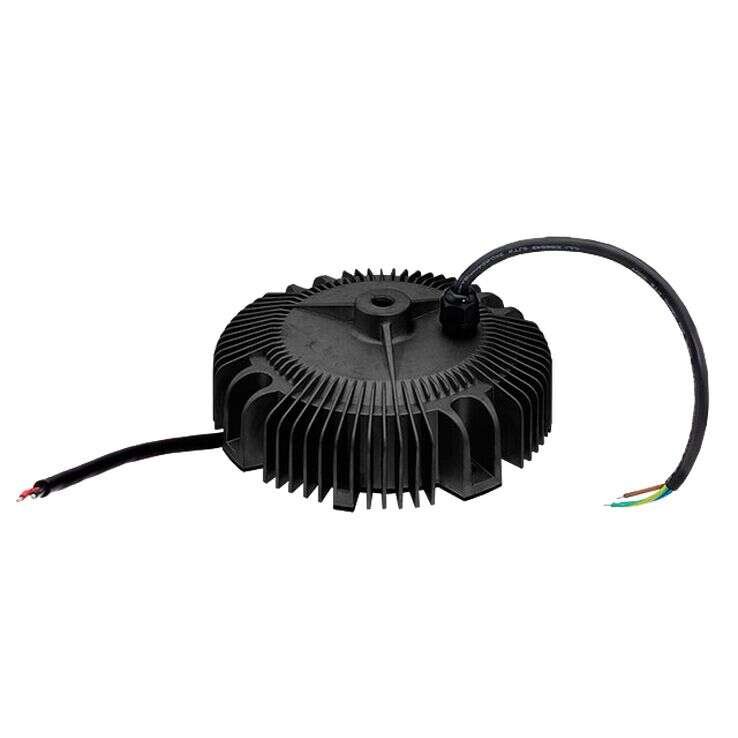

HBG-240(DA) Series
240W Constant Voltage + Constant Current LED Driver
HBG-240(DA) Series Main Features:
Constant Voltage + Constant Current mode output
Circular metal housing with class I design
Built-in active PFC function
Models:
Manufacturer:
Type:
Other features:
HBG-240-24DA / HBG-240-36DA
HBG-240-48DA / HBG-240-60DA
MEAN WELL
Outdoor Circular Shape Design LED Driver
IP67/IP65 rating for indoor or out
-door installations
Function options: output adjustable
via potentiometer; 3 in 1 dimming;DALI
Typical lifetime>50000 hours
5 years warranty
Quote Request
| HBG-240-24DA | HBG-240-36DA | HBG-240-48DA | HBG-240-60DA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 240 | 240 | 240 | 240 | ||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||||
| Output Voltage | 24 | 36 | 48 | 60 | ||||||||||||
| Output Current | 10A | 6.7A | 5A | 4A | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 6~10A | 4~6.7A | 3~5A | 2.4~4A | ||||||||||||
| Dimensions | 191.5x69 | 191.5x69 | 191.5x69 | 191.5x69 | ||||||||||||
| Working Temperature | -40-+75°C | |||||||||||||||
| Satety Standards | UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB19510.1, GB19510.14, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020 | |||||||||||||||
