Home / LED Driver Indoor With Dimming / HBG-60-P

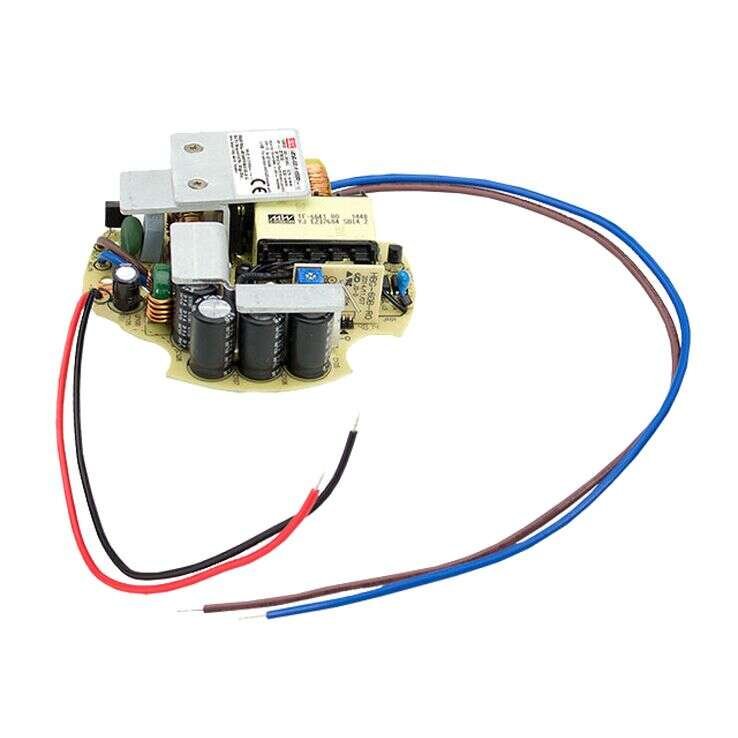

HBG-60-P Series
60W Constant Current Mode LED Driver
HBG-60-P Series Main Features:
Constant current design
Protections: Short circuit / Over temperature
Models:
Manufacturer:
Type:
Other features:
HBG-60-1050P / HBG-60-1400P
HBG-60-2100P
MEAN WELL
Indoor With Dimming LED Driver
Universal AC input / Full range (up to 295VAC)
Built-in active PFC function
High efficiency up to 91%
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
Class 2 power unit
No load power consumption <0.5W
5 years warranty
Quote Request
| HBG-60-1050P | HBG-60-1400P | HBG-60-2100P | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | |||||||||||||
| Input Voltage | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | |||||||||||||
| Output Voltage | 60 | 60 | 60 | |||||||||||||
| Output Current | 1050mA | 1400mA | 2100mA | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 680~1050mA | 910~1400mA | 1360mA~2100mA | |||||||||||||
| DC Output Adjustment | 37~55V | 28~43V | 19~29V | |||||||||||||
| Dimensions | 99x26 | 99x26 | 99x26 | |||||||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13, BS EN/EN62384, GB19510.14, GB19510.1 independent,EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, GB/T 17743, GB17625.1, BS EN/EN61000-3-2 Class C (@load≧65%) ; BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||||||||
