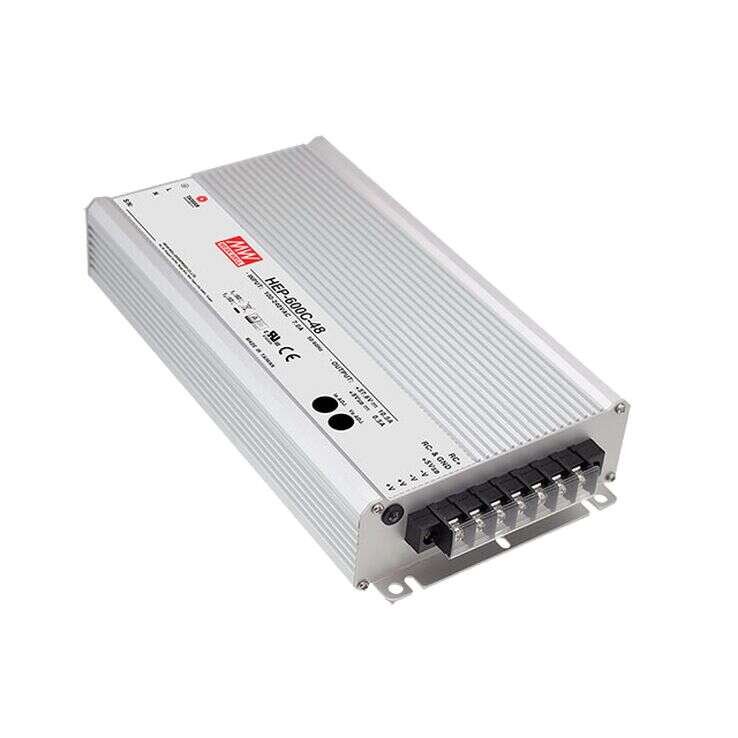

HEP-600C Series
Chargers 504–604.8W
HEP-600C Series Main Features:
Withstand 10G vibration test
Fanless design, cooling by free air convection
Models:
Manufacturer:
Type:
Other features:
HEP-600C-12 / HEP-600C-24
HEP-600C-48
MEAN WELL
Charger
Protections: Short circuit/Over voltage/
Over temperature
3 Stage charging
No load power consumption <0.5W at remote OFF
Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
3 Colour LED loading indicator
High efficiency up to 95.5%
6 years warranty
Quote Request
| HEP-600C-12 | HEP-600C-24 | HEP-600C-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 504 | 604.8 | 604.8 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 35A | 21A | 10.5A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 11.5~15.1V | 23-30.2V | 5.2-10.5V | |||||||||||||
| Dimensions | 280x144x48.5 | 280x144x48.5 | 280x144x48.5 | |||||||||||||
| Working Temperature | -40~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22), radiation class A, conduction class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | |||||||||||||||
