Home / LED Driver Outdoor with Dimming / HLG-120H-C

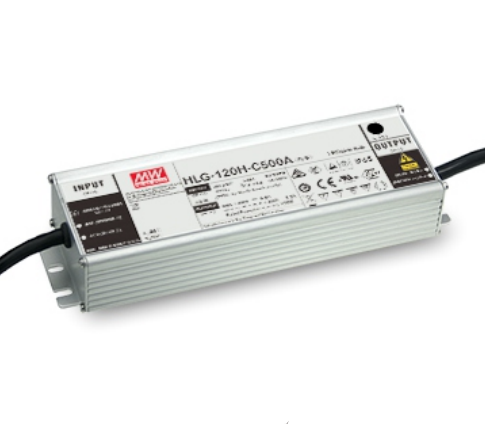

HLG-120H-C Series
150W Constant Current Mode LED Driver
HLG-120H-C Series Main Features:
Constant Current mode output
IP67/IP65 rating for indoor or outside installations
Models:
Manufacturer:
Type:
Other features:
HLG-120H-C350A / HLG-120H-C500A
HLG-120H-C700A / HLG-120H-C1050A
HLG-120H-C1400A
MEAN WELL
Outdoor with Dimming LED Driver
Metal housing with class I design
Built-in active PFC function
Function options: output adjustable
via potentiometer; 3 in 1 dimming;
Timer dimming
Typical lifetime >62000 hours
7 years warranty
Quote Request
| HLG-120H-C350A | HLG-120H-C500A | HLG-120H-C700A | HLG-120H-C1050A | HLG-120H-C1400A | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 150.5 | 150 | 150.5 | 155.4 | 151.2 | |||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||||||
| Output Current | 350mA | 500mA | 700mA | 1050mA | 1400mA | |||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 220x68x38.8 | 220x68x38.8 | 220x68x38.8 | 220x68x38.8 | 220x68x38.8 | |||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent,GB19510.1, GB19510.14, IP65 or IP67, J61347-1, J61347-2-13(for A type only), EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020 | |||||||||||||||
