Home / LED Driver Outdoor Constant Voltage / HLG-185H

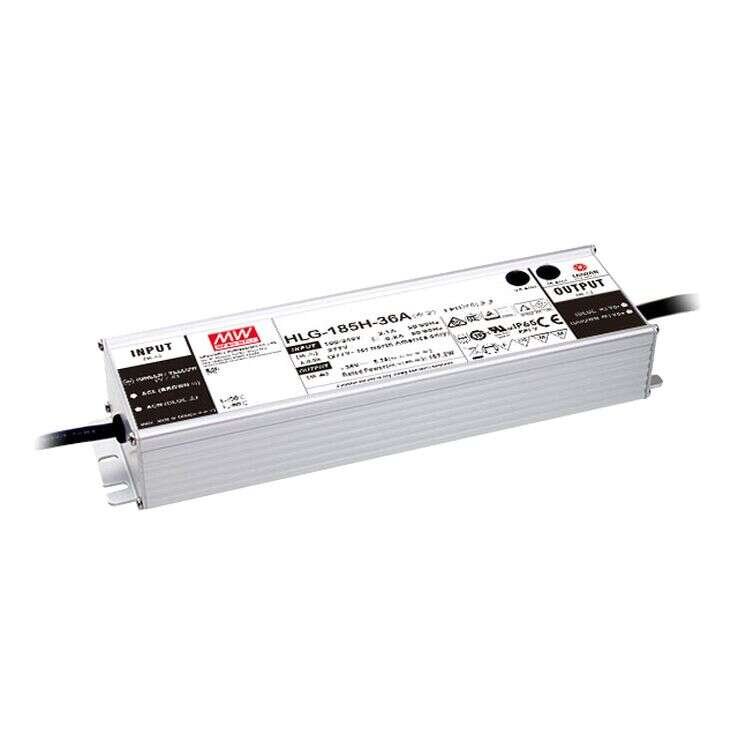

HLG-185H Series
185W Constant Voltage + Constant Current LED Driver
HLG-185H Series Main Features:
Constant Voltage + Constant Current mode output
IP67/IP65 rating for indoor or outside installations
Models:
Manufacturer:
Type:
Other features:
HLG-185H-12A / HLG-185H-15A
HLG-185H-20A / HLG-185H-24A
HLG-185H-30A / HLG-185H-36A
HLG-185H-42A / HLG-185H-48A
HLG-185H-54A
MEAN WELL
Outdoor Constant Voltage LED Driver
Metal housing with class I design
Function options: output adjustable
via potentiometer; 3 in 1 dimming
Typical lifetime >62000 hours
7 years warranty
Quote Request
| HLG-185H-12A | HLG-185H-15A | HLG-185H-20A | HLG-185H-24A | HLG-185H-30A | HLG-185H-36A | HLG-185H-42A | HLG-185H-48A | HLG-185H-54A | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 156 | 172.5 | 186 | 187.2 | 186 | 187.2 | 184.8 | 187.2 | 186.3 | |||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | |||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”),CSA C22.2 No. 250.0-08;BS EN/EN 61347-1,BS EN/EN 61347-2-13，AS/NZS 61347-1(except for AB-type), AS/NZS 61347-2-13(except for AB-type) independent;GB19510.1,GB19510.14 (except for D-type) ; IP65 or IP67; J61347-1, J61347-2-13(except for D-type), EAC TP TC 004, KC61347-1,KC61347-2-13(except for D-type) approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3GB/T 17743 , GB17625.1(except for D-type) ,EAC TP TC 020, KSC 9815(except for D-type) | |||||||||||||||
