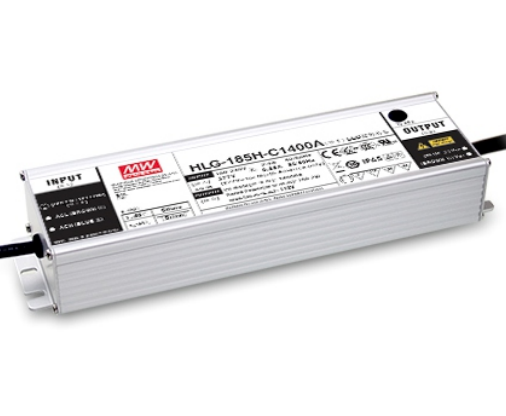

HLG-185H-C Series
200W Constant Current Mode LED Driver
HLG-185H-C Series Main Features:
Constant Current mode output
IP67/IP65 rating for indoor or outside installations
Models:
Manufacturer:
Type:
Other features:
HLG-185H-C500A / HLG-185H-C700A
HLG-185H-C1050A / HLG-185H-C1400A
MEAN WELL
Outdoor with Dimming LED Driver
Metal housing with class I design
Built-in active PFC function
Function options: output adjustable
via potentiometer; 3 in 1 dimming;
Timer dimming
Typical lifetime >62000 hours
7 years warranty
Quote Request
| HLG-185H-C500A | HLG-185H-C700A | HLG-185H-C1050A | HLG-185H-C1400A | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 200 | 200.2 | 199.5 | 200.2 | ||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||||
| Output Current | 500mA | 700mA | 1050mA | 1400mA | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| Dimensions | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | ||||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB19510.1,GB19510.14;IP65 or IP67, J61347-1, J61347-2-13(for A type only), EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧50% load) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020 | |||||||||||||||
