Home / LED Driver Outdoor Constant Voltage / HLG-240H

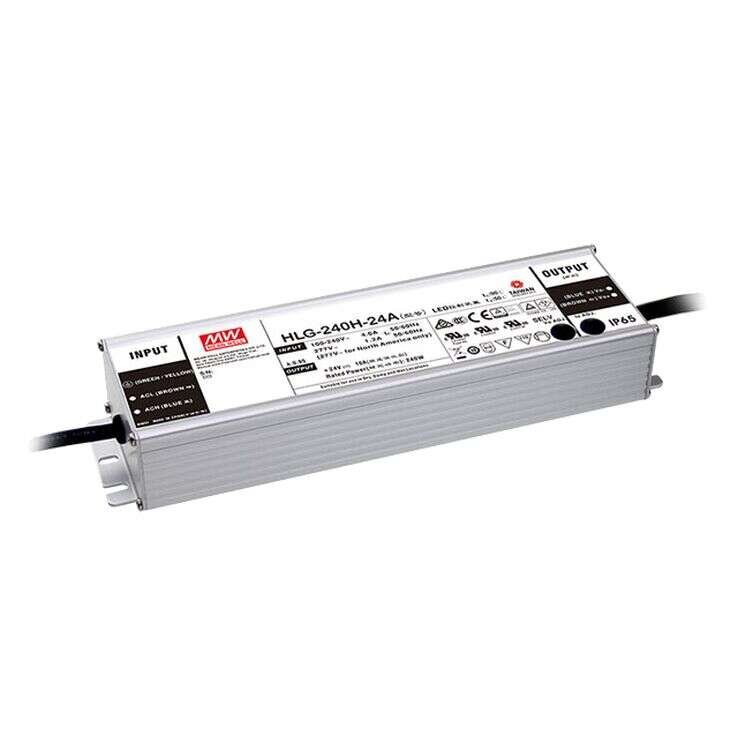

HLG-240H Series
240W Constant Voltage + Constant Current LED Driver
HLG-240H Series Main Features:
Constant Voltage + Constant Current mode output
IP67/IP65 rating for indoor or outside installations
Models:
Manufacturer:
Type:
Other features:
HLG-240H-12A / HLG-240H-15A
HLG-240H-20A / HLG-240H-24A
HLG-240H-30A / HLG-240H-36A
HLG-240H-42A / HLG-240H-48A
HLG-240H-54A
MEAN WELL
Outdoor Constant Voltage LED Driver
Metal housing with class I design
Function options: output adjustable
via potentiometer; 3 in 1 dimming;
Typical lifetime >62000 hours
7 years warranty
Quote Request
| HLG-240H-12A | HLG-240H-15A | HLG-240H-20A | HLG-240H-24A | HLG-240H-30A | HLG-240H-36A | HLG-240H-42A | HLG-240H-48A | HLG-240H-54A | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 192 | 225 | 240 | 240 | 240 | 241.2 | 240.24 | 240 | 240.3 | |||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | |||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL1012, CAN/CSA-C22.2 No. 107.1-01, UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent (except for HLG-240H C type); IEC/UL/BS EN/EN 62368-1(except for AB,D type), UL8750;GB19510.1,GB19510.14(except for C-type);IP65 or IP67;J61347-1,J61347-2-13(except for B,AB and D-type), BIS IS15885( for 48V only), EAC TP TC 004,KC61347-1,KC61347-2-13(except for AB,C,D-type) approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020;KC KN15,KN61547(except for AB,C,D-type) | |||||||||||||||
