Home / LED Driver Outdoor Constant Voltage / HLG-320H

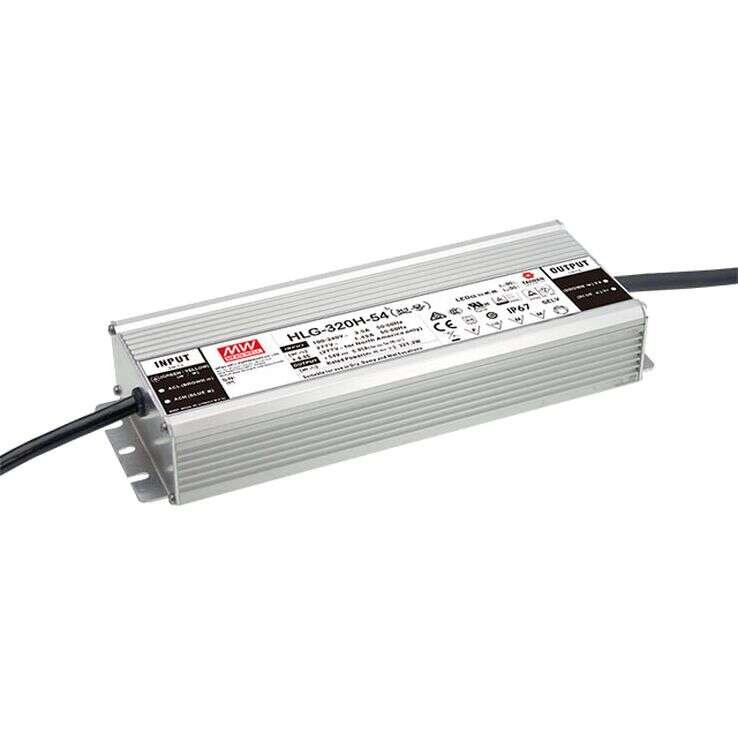

HLG-320H Series
320W Constant Voltage + Constant Current LED Driver
HLG-320H Series Main Features:
Constant Voltage + Constant Current mode output
IP67/IP65 rating for indoor or outside installations
Models:
Manufacturer:
Type:
Other features:
HLG-320H-12A / HLG-320H-15A
HLG-320H-20A / HLG-320H-24A
HLG-320H-30A / HLG-320H-36A
HLG-320H-42A / HLG-320H-48A
HLG-320H-54A
MEAN WELL
Outdoor Constant Voltage LED Driver
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
Function options: output adjustable
via potentiometer; 3 in 1 dimming;
Typical lifetime >62000 hours
7 years warranty
Quote Request
| HLG-320H-12A | HLG-320H-15A | HLG-320H-20A | HLG-320H-24A | HLG-320H-30A | HLG-320H-36A | HLG-320H-42A | HLG-320H-48A | HLG-320H-54A | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 264 | 285 | 300 | 320.16 | 321 | 320.4 | 321.3 | 321.6 | 321.3 | |||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 252x90x43.8 | 252x90x43.8 | 252x90x43.8 | 252x90x43.8 | 252x90x43.8 | 252x90x43.8 | 252x90x43.8 | 252x90x43.8 | 252x90x43.8 | |||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent; GB19510.1,GB19510.14; IP65 or IP67 (except for HLG-320H C-type); J61347-1, J61347-2-13 (except for B,AB,C and D-type), EAC TP TC 004;KC61347-1,KC61347-2-13(except for AB,C-type), BIS IS 15885(Part2/Sec13) (NOTE 13) approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020 | |||||||||||||||
