Home / LED Driver Outdoor with Dimming / HLG-320H-C

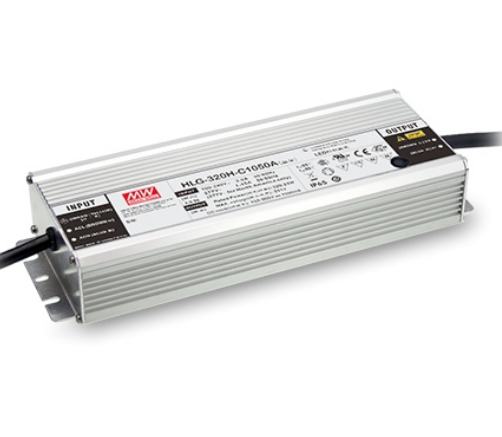

HLG-320H-C Series

320W Constant Current Mode LED Driver

HLG-320H-C

HLG-320H-C Series Main Features:

Constant Current mode output

IP67/IP65 rating for indoor or outside installations

Models:

Manufacturer:

Type:

Other features:

HLG-320H-C700A / HLG-320H-C1050A
HLG-320H-C1400A / HLG-320H-C1750A
HLG-320H-C2100A / HLG-320H-C2800A
HLG-320H-C3500A

MEAN WELL

Outdoor with Dimming LED Driver

Metal housing with class I design

Built-in active PFC function

Function options: output adjustable
via potentiometer; 3 in 1 dimming

Typical lifetime >62000 hours

7 years warranty

Quote Request

    HLG-320H-C700AHLG-320H-C1050AHLG-320H-C1400AHLG-320H-C1750AHLG-320H-C2100AHLG-320H-C2800AHLG-320H-C3500A
    Wattage299.6320.25320.6320.25319.2319.2318.5
    Input Voltage90~305VAC
    127~417VDC    		90~305VAC
    127~417VDC    		90~305VAC
    127~417VDC    		90~305VAC
    127~417VDC    		90~305VAC
    127~417VDC    		90~305VAC
    127~417VDC    		90~305VAC
    127~417VDC
    Output Current700mA1050mA1400mA1750mA2100mA2800mA3500mA
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingle
    Dimensions252x90x43.8252x90x43.8252x90x43.8252x90x43.8252x90x43.8252x90x43.8252x90x43.8
    Working Temperature-40-+85°C
    Satety StandardsUL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB19510.1,GB19510.14,EAC TP TC 004, IP65 or IP67 approved
    EMC StandardsCompliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3GB/T 17743 GB17625.1EAC TP TC 020
