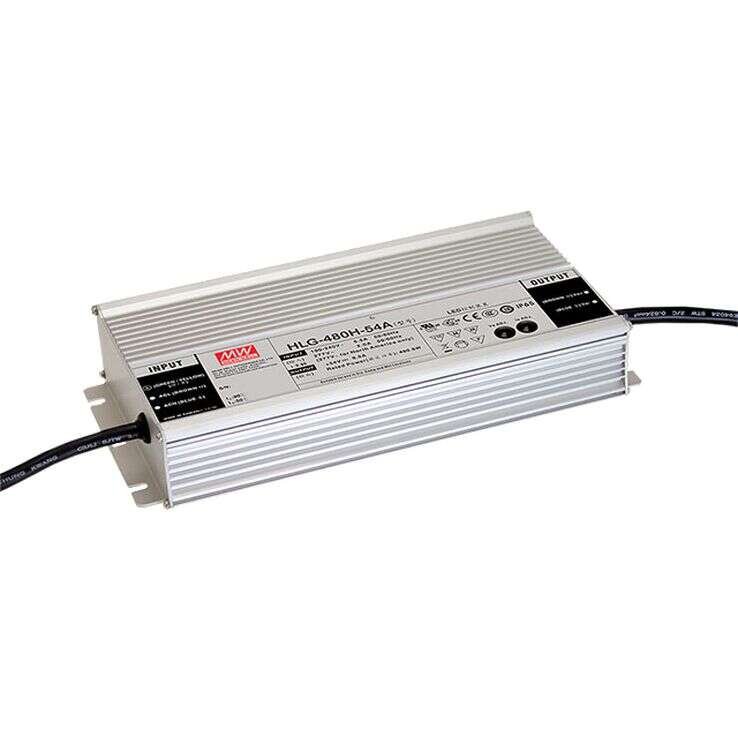

HLG-480H Series
480W Constant Voltage + Constant Current LED Driver
HLG-480H Series Main Features:
Constant Voltage + Constant Current mode output
IP67/IP65 rating for indoor or outside installations
Models:
Manufacturer:
Type:
Other features:
HLG-480H-24A / HLG-480H-30A
HLG-480H-36A / HLG-480H-42A
HLG-480H-48A / HLG-480H-54A
MEAN WELL
Outdoor Constant Voltage LED Driver
Metal housing with class I design
Built-in active PFC function
Function options: output adjustable
via potentiometer; 3 in 1 dimming(dim-to-
off, isolated design); smart timer dim
-ming; junction box
Typical lifetime >62000 hours
7 years warranty
Quote Request
| HLG-480H-24A | HLG-480H-30A | HLG-480H-36A | HLG-480H-42A | HLG-480H-48A | HLG-480H-54A | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 480 | 480 | 478.8 | 478.8 | 480 | 480.6 | ||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||
| Output Voltage | 24V | 30V | 36V | 42V | 48V | 54V | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| Dimensions | 262x125x43.8 | 262x125x43.8 | 262x125x43.8 | 262x125x43.8 | 262x125x43.8 | 262x125x43.8 | ||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1;IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016;KC61347-1, KC61347-2-13(except for AB,Dx,D2-type), J61347-1(H29), J61347-2-13(H29)(except for Dx type)approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3;GB/T 17743, GB17625.1, EAC TP TC 020;KC KN15,KN61547(except for AB,Dx,D2-type),J55015(H29)(for Blank/A-type) | |||||||||||||||
