Home / LED Driver Outdoor with Dimming / HLG-480H-C

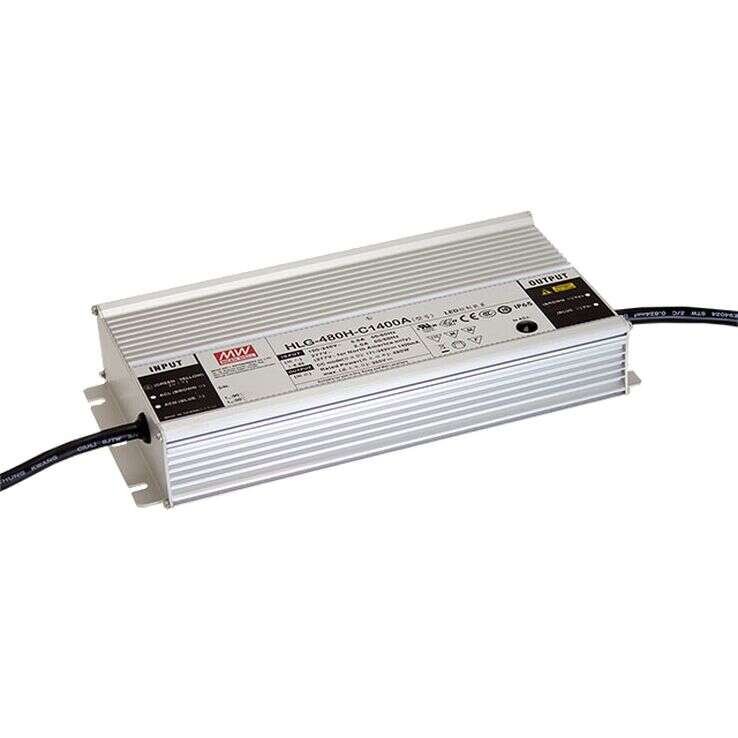

HLG-480H-C Series

480W Constant Current Mode LED Driver

HLG-480H-C

HLG-480H-C Series Main Features:

Constant Current mode output

IP67/IP65 rating for indoor or outside installations

Environment-adaptive driving capability

Models:

Manufacturer:

Type:

Other features:

HLG-480H-C1400A / HLG-480H-C1750A
HLG-480H-C2100A / HLG-480H-C2800A
HLG-480H-C3500A

MEAN WELL

Outdoor with Dimming LED Driver

Metal housing with class I design

Built-in active PFC function

Function options: output adjustable via
potentiometer; 3 in 1 dimming(dim-to
-off, isolated design); Smart timer dimm
-ing; Low temperature light-on; Junction box

Typical lifetime >62000 hours

7 years warranty

Quote Request

    HLG-480H-C1400AHLG-480H-C1750AHLG-480H-C2100AHLG-480H-C2800AHLG-480H-C3500A
    Wattage480480481479480
    Input Voltage90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC
    Output Current1400mA1750mA2100mA2800mA3500mA
    Output Voltage OptionSingleSingleSingleSingleSingle
    Dimensions262x125x43.8262x125x43.8262x125x43.8262x125x43.8262x125x43.8
    Working Temperature-40-+90°C
    Satety StandardsUL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1; IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved
    EMC StandardsCompliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧50%); BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
