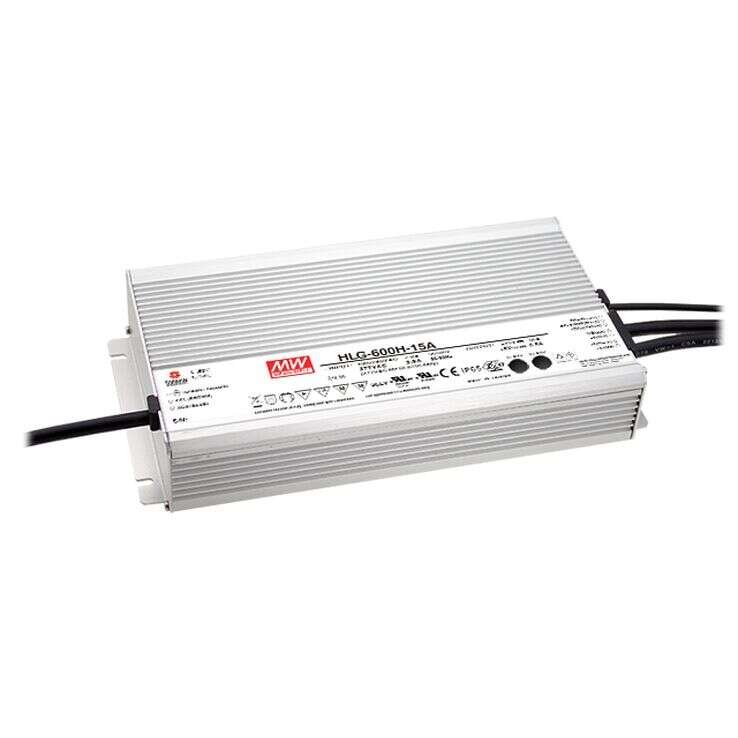

HLG-600H Series
600W Constant Voltage + Constant Current LED Driver
HLG-600H Series Main Features:
Constant Voltage + Constant Current mode output
IP67/IP65 rating for indoor or outside installations
Models:
Manufacturer:
Type:
Other features:
HLG-600H-12A / HLG-600H-15A
HLG-600H-20A / HLG-600H-24A
HLG-600H-30A / HLG-600H-36A
HLG-600H-42A / HLG-600H-48A
HLG-600H-54A
MEAN WELL
Outdoor Constant Voltage LED Driver
Metal housing with class I design
Standby power consumption <0.5W at remote off
Function options: output adjustable
via potentiometer; 3 in 1 dimming(dim-to-off)
Typical lifetime >62000 hours
7 years warranty
Quote Request
| HLG-600H-12A | HLG-600H-15A | HLG-600H-20A | HLG-600H-24A | HLG-600H-30A | HLG-600H-36A | HLG-600H-42A | HLG-600H-48A | HLG-600H-54A | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 480 | 540 | 560 | 600 | 600 | 601.2 | 600.6 | 600 | 604.8 | |||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 280x144x48.5 | 280x144x48.5 | 280x144x48.5 | 280x144x48.5 | 280x144x48.5 | 280x144x48.5 | 280x144x48.5 | 280x144x48.5 | 280x144x48.5 | |||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL60950-1, UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, J61347-1, J61347-2-13, GB19510.1,GB19510.14, EAC TP TC 004, AS/NZS 60950.1(by CB)(AB type except ),KC61347-1, KC61347-2-13(except for AB type) approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, EAC TP TC 020; GB/T 17743,GB17625.1, KS C 9815, KS C 9547 | |||||||||||||||
