Home / LED Driver Outdoor with Dimming / HLG-80H-C

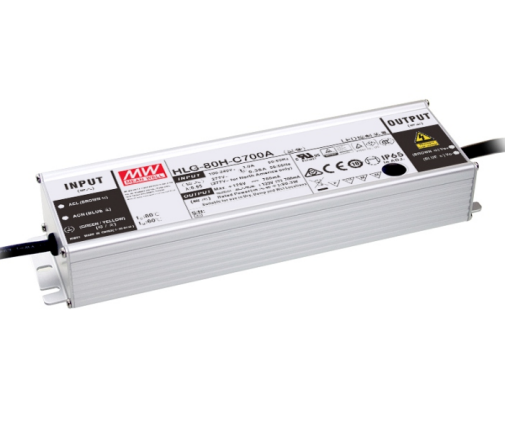

HLG-80H-C Series
90W Constant Current Mode LED Driver
HLG-80H-C Series Main Features:
Constant Current mode output
IP67/IP65 rating for indoor or outside installations
Models:
Manufacturer:
Type:
Other features:
HLG-80H-C350A / HLG-80H-C700A
MEAN WELL
Outdoor with Dimming LED Driver
Metal housing with class I design
Built-in active PFC function
Function options: output adjustable
via potentiometer; 3 in 1 dimming;
Timer dimming
Typical lifetime >62000 hours
7 years warranty
Quote Request
| HLG-80H-C350A | HLG-80H-C700A | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 89.95 | 90.3 | ||||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||||||
| Output Current | 350mA | 700mA | ||||||||||||||
| Output Voltage Option | Single | Single | ||||||||||||||
| Dimensions | 195.6x61.5x38.8 | 195.6x61.5x38.8 | ||||||||||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent,GB19510.1, GB19510.14,EAC TP TC 004,IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020 | |||||||||||||||
