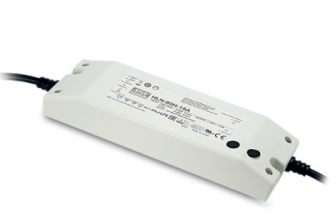

HLN-80H Series
80W Single Output Switching Power Supply
HLN-80H Series Main Features:
Universal AC input / Full range (up to 305VAC)
OCP point adjustable through output cable or internal potentiometer.
Models:
Manufacturer:
Type:
Other features:
HLN-80H-12A / HLN-80H-15A
HLN-80H-20A / HLN-80H-24A
HLN-80H-30A / HLN-80H-36A
HLN-80H-42A / HLN-80H-48A
HLN-80H-54A
MEAN WELL
Indoor Constant Current LED Driver
Built-in active PFC function
Protections: Short circuit / Over current
/ Over voltage / Over temperature
Fully isolated plastic case with IP64 level
Cooling by free air convection
Class 2 power unit
Three in one dimming function (1~ 10Vdc
or PWM signal or resistance).
Compliance to worldwide safety regula
-tions for lighting
3 years warranty
Quote Request
| HLN-80H-12A | HLN-80H-15A | HLN-80H-20A | HLN-80H-24A | HLN-80H-30A | HLN-80H-36A | HLN-80H-42A | HLN-80H-48A | HLN-80H-54A | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60W | 75W | 80W | 81.6W | 81W | 82.8W | 81.9W | 81.6W | 81W | |||||||
| Input Voltage | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | |||||||
| Output Voltage | 12 | 15 | 20 | 24 | 30 | 36 | 42 | 48 | 54 | |||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | |||||||
| Working Temperature | -40-+50°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent ; IP64, EAC TP TC 004 approved ; Design refer to UL60950-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧60% load, 12V model ≧65% load) ; BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||||||||
