Home / LED Driver PCB Type / HLP-60H

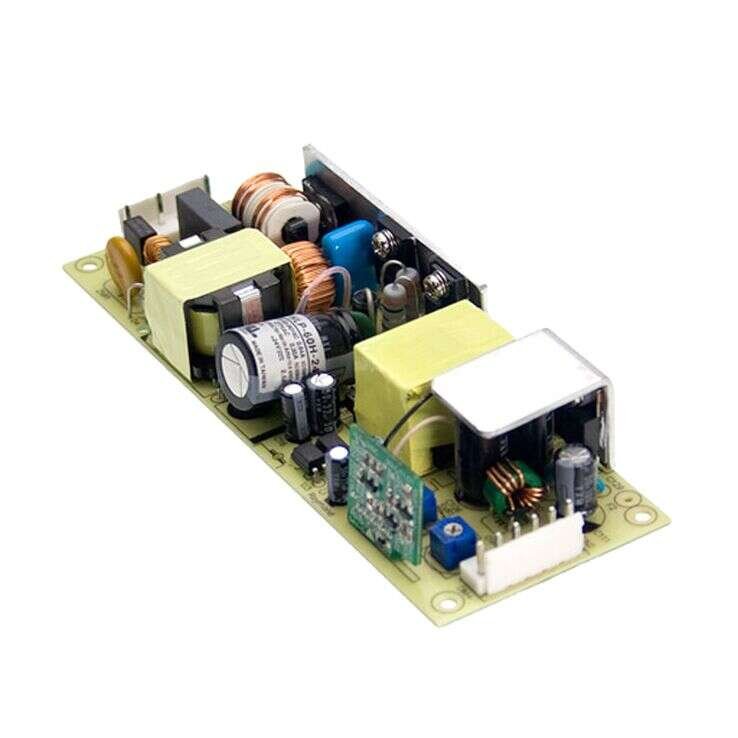

HLP-60H Series
60W Single Output Switching Power Supply
HLP-60H Series Main Features:
Universal AC input / Full range
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
Models:
Manufacturer:
Type:
Other features:
HLP-60H-15 / HLP-60H-20
HLP-60H-24 / HLP-60H-30
HLP-60H-36 / HLP-60H-42
HLP-60H-48 / HLP-60H-54
MEAN WELL
PCB Type LED Driver
Class 2 power unit
Built-in active PFC function
Output constant current level adjustable
3 in 1 dimming function
Suitable for built-in LED lighting system
Suitable for dry / damp locations
100% full load burn-in test
3 years warranty
Quote Request
| HLP-60H-15 | HLP-60H-20 | HLP-60H-24 | HLP-60H-30 | HLP-60H-36 | HLP-60H-42 | HLP-60H-48 | HLP-60H-54 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | 60 | 61.2 | 60.9 | 62.4 | 62.1 | ||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||
| Output Current | 4A | 3A | 2.5A | 2A | 1.7A | 1.45A | 1.3A | 1.15A | ||||||||
| Output Voltage | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | ||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| Dimensions | 147x53x27 | 147x53x27 | 147x53x27 | 147x53x27 | 147x53x27 | 147x53x27 | 147x53x27 | 147x53x27 | ||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004 approved ; design refer to UL60950-1, BS EN/EN60335-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧60% load) ; BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||||||||
