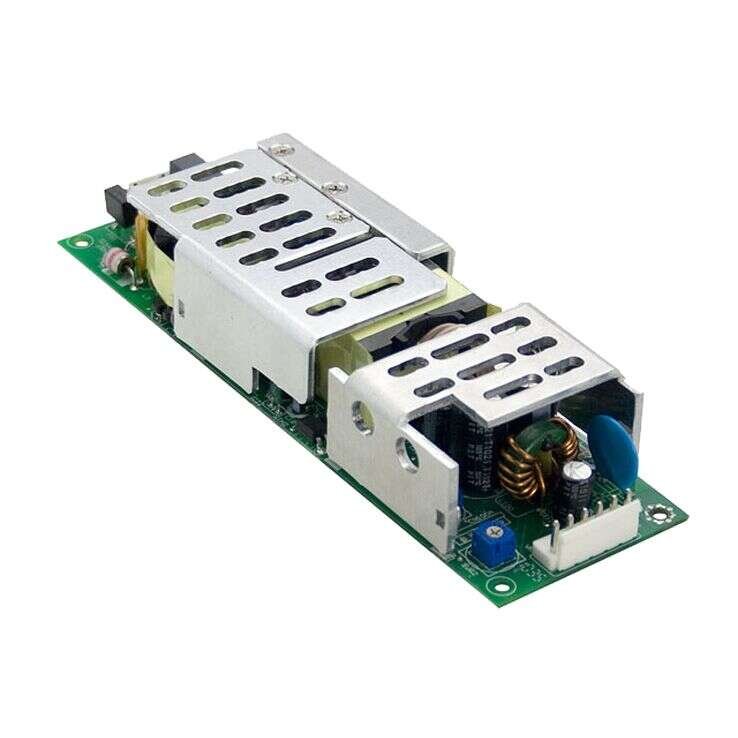

HLP-80H Series
80W Single Output Switching Power Supply
HLP-80H Series Main Features:
Universal AC input / Full range
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
Models:
Manufacturer:
Type:
Other features:
HLP-80H-12 / HLP-80H-15
HLP-80H-20 / HLP-80H-24
HLP-80H-30 / HLP-80H-36
HLP-80H-42 / HLP-80H-48
HLP-80H-54
MEAN WELL
PCB Type LED Driver
Class 2 power unit
Built-in active PFC function
Output constant current level adjustable
3 in 1 dimming function
Suitable for built-in LED lighting system
Suitable for dry / damp locations
100% full load burn-in test
3 years warranty
Quote Request
| HLP-80H-12 | HLP-80H-15 | HLP-80H-20 | HLP-80H-24 | HLP-80H-30 | HLP-80H-36 | HLP-80H-42 | HLP-80H-48 | HLP-80H-54 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 75 | 80 | 81.6 | 81 | 82.8 | 81.9 | 81.6 | 81 | |||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||
| Output Current | 5A | 5A | 4A | 3.4A | 2.7A | 2.3A | 1.95A | 1.7A | 1.5A | |||||||
| Output Voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 167x53x29.5 | 167x53x29.5 | 167x53x29.5 | 167x53x29.5 | 167x53x29.5 | 167x53x29.5 | 167x53x29.5 | 167x53x29.5 | 167x53x29.5 | |||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004 approved ; Design refer to UL60950-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧60% load, 12V model ≧65% load) ; BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||||||||
