Home / LED Driver Outdoor Constant Current / HVG-100

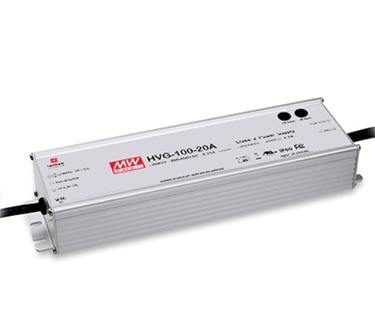

HVG-100 Series
100W Constant Voltage + Constant Current LED Driver
HVG-100 Series Main Features:
Wide input range 180~528VAC
Constant Voltage + Constant Current mode output
Models:
Manufacturer:
Type:
Other features:
HVG-100-15A / HVG-100-20A
HVG-100-24A / HVG-100-30A
HVG-100-36A / HVG-100-42A
HVG-100-48A / HVG-100-54A
MEAN WELL
Outdoor Constant Current LED Driver
Metal housing with Class I design
Built-in active PFC function
IP67 / IP65 rating for indoor or out
-door installations
Function options: output adjustable
via potentiometer; 3 in 1 dimming;Timer dimming
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty
Quote Request
| HVG-100-15A | HVG-100-20A | HVG-100-24A | HVG-100-30A | HVG-100-36A | HVG-100-42A | HVG-100-48A | HVG-100-54A | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 96 | 96 | 96 | 95.4 | 95.76 | 96 | 95.58 | ||||||||
| Input Voltage | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | ||||||||
| Output Voltage | 15 | 20 | 24 | 30 | 36 | 42 | 48 | 54 | ||||||||
| Output Current | 5A | 4.8A | 4A | 3.2A | 2.65A | 2.28A | 2A | 1.77A | ||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| Dimensions | 236x68x38.8mm | 236x68x38.8mm | 236x68x38.8mm | 236x68x38.8mm | 236x68x38.8mm | 236x68x38.8mm | 236x68x38.8mm | 236x68x38.8mm | ||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (@ load≧50% load,@ load≧60% only for 15V model) ; EN61000-3-3, FCC Part 15 Subpart B,EAC TP TC 020 | |||||||||||||||
