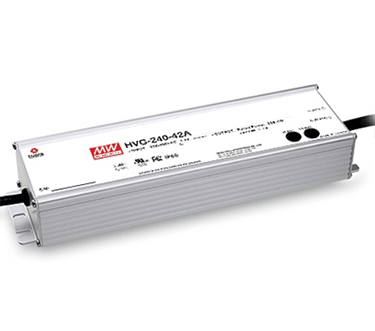

HVG-240 Series
240W Constant Voltage + Constant Current LED Driver
HVG-240 Series Main Features:
Wide input range 180~528VAC
Constant Voltage + Constant Current mode output
Models:
Manufacturer:
Type:
Other features:
HVG-240-24A / HVG-240-30A
HVG-240-36A / HVG-240-42A
HVG-240-48A / HVG-240-54A
MEAN WELL
Outdoor Constant Current LED Driver
Metal housing with Class I design
Built-in active PFC function
IP67 / IP65 rating for indoor or out
-door installations
Function options: output adjustable
via potentiometer; 3 in 1 dimming;Timer dimming
Typical lifetime>50000 hours
5 years warranty
Quote Request
| HVG-240-24A | HVG-240-30A | HVG-240-36A | HVG-240-42A | HVG-240-48A | HVG-240-54A | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 240 | 240 | 241.2 | 239.4 | 240 | 243 | ||||||||||
| Input Voltage | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | ||||||||||
| Output Voltage | 24 | 30 | 36 | 42 | 48 | 54 | ||||||||||
| Output Current | 10A | 8A | 6.7A | 5.7A | 5A | 4.5A | ||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | ||||||||||
| Dimensions | 254.2x68x38.8 | 254.2x68x38.8 | 254.2x68x38.8 | 254.2x68x38.8 | 254.2x68x38.8 | 254.2x68x38.8 | ||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to FCC Part 15 Subpart B,EAC TP TC 020 | |||||||||||||||
