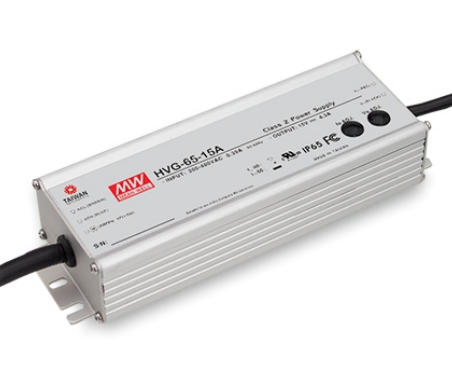

HVG-65 Series
65W Constant Voltage + Constant Current LED Driver
HVG-65 Series Main Features:
Wide input range 180~528VAC
Constant Voltage + Constant Current mode output
Models:
Manufacturer:
Type:
Other features:
HVG-65-12A / HVG-65-15A
HVG-65-20A / HVG-65-24A
HVG-65-30A / HVG-65-36A
HVG-65-42A / HVG-65-48A
HVG-65-54A
MEAN WELL
Outdoor Constant Current LED Driver
Metal housing with Class I design
Built-in active PFC function
IP67 / IP65 rating for indoor or out
-door installations
Function options: output adjustable
via potentiometer; 3 in 1 dimming;Timer dimming
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty
Quote Request
| HVG-65-12A | HVG-65-15A | HVG-65-20A | HVG-65-24A | HVG-65-30A | HVG-65-36A | HVG-65-42A | HVG-65-48A | HVG-65-54A | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 64.5 | 65 | 65 | 65.1 | 65.2 | 65.1 | 65.3 | 65.3 | |||||||
| Input Voltage | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | |||||||
| Output Voltage | 12 | 15 | 20 | 24 | 30 | 36 | 42 | 48 | 54 | |||||||
| Output Current | 5A | 4.3A | 3.25A | 2.71A | 2.17A | 1.81A | 1.55A | 1.36A | 1.21A | |||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| Dimensions | 189x61.5x36.8 | 189x61.5x36.8 | 189x61.5x36.8 | 189x61.5x36.8 | 189x61.5x36.8 | 189x61.5x36.8 | 189x61.5x36.8 | 189x61.5x36.8 | 189x61.5x36.8 | |||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020 | |||||||||||||||
