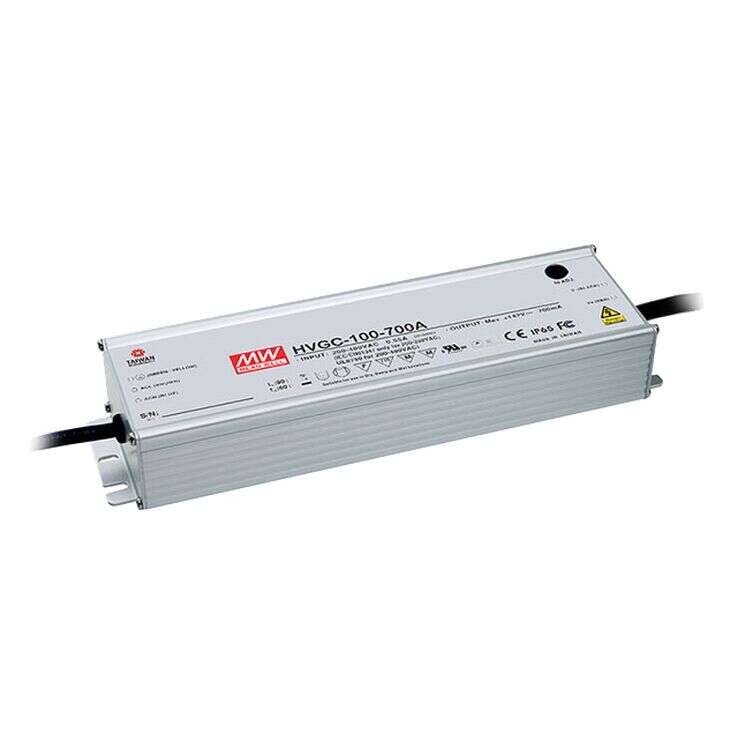

HVGC-100 Series
100W Constant Current Mode LED Driver
HVGC-100 Series Main Features:
Wide input range 180~528VAC
IP67 / IP65 rating for indoor or outdoor installations
Models:
Manufacturer:
Type:
Other features:
HVGC-100-350A / HVGC-100-700A
MEAN WELL
Outdoor Constant Current LED Driver
Metal housing with Class I design
Built-in active PFC function
Constant Current mode output
Function options: output adjustable
via potentiometer; 3 in 1 dimming;Timer dimming
Typical lifetime>50000 hours
5 years warranty
Quote Request
| HVGC-100-350A | HVGC-100-700A | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 99.75 | 99.4 | ||||||||||||||
| Input Voltage | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | ||||||||||||||
| Output Current | 350mA | 700mA | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| Dimensions | 236x68x38.8 | 236x68x38.8 | ||||||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved; design refer to UL60950-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart, EAC TP TC 020 | |||||||||||||||
